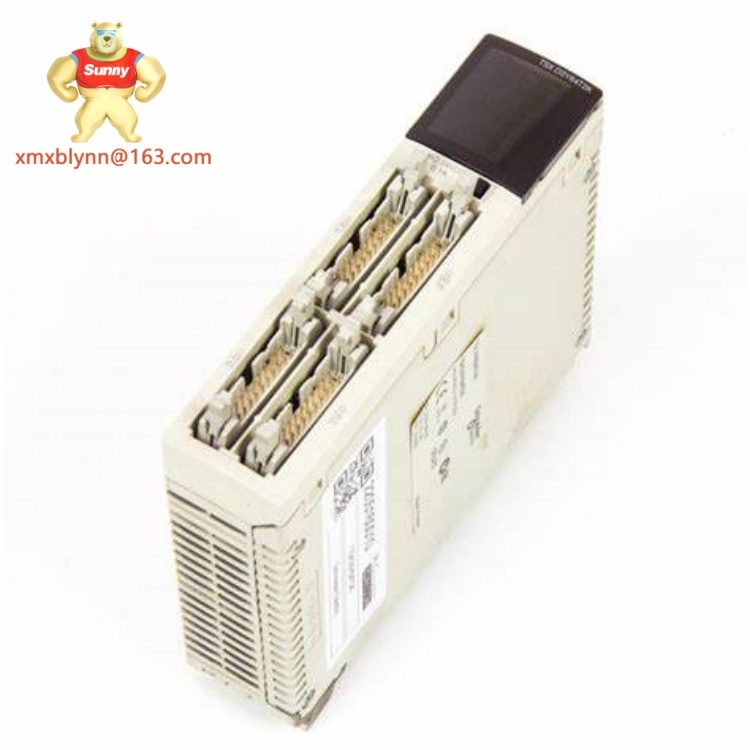

The TSXDSZ08R5 from Schneider is a key component in programmable logic controller (PLC) systems, engineered to deliver precise digital output control for industrial automation processes. As a critical industrial automation spare part, this module converts control signals from PLC processors into actionable commands for field devices like valves, relays, and contactors. It integrates seamlessly with Schneider’s Modicon M340 PLC series and works alongside distributed control system parts, including ABB I/O modules, to create cohesive automation architectures.
In practice, engineers frequently install the TSXDSZ08R5 in control cabinets of packaging lines, where it triggers conveyor stops and product diverters based on sensor inputs. What makes the TSXDSZ08R5 valuable is its ability to handle high switching frequencies without signal degradation, ensuring consistent performance in fast-paced production environments. Whether in new installations or legacy system upgrades, the TSXDSZ08R5 serves as a reliable link between control logic and physical processes, keeping operations running smoothly.
The TSXDSZ08R5 combines durable construction with precise control to deliver consistent performance in demanding environments. Its relay outputs handle up to 5A per channel, supporting direct control of medium-duty actuators without external contactors—a space-saving advantage in crowded control cabinets.
Built-in diagnostics set the TSXDSZ08R5 apart: real-time monitoring detects open circuits and overloads, triggering alerts via the PLC system to prevent equipment damage. A beverage bottling plant reported reducing unplanned line stops by 25% after upgrading to TSXDSZ08R5 modules, thanks to these early warnings.
Integration is streamlined: the module natively supports Schneider’s PLC ecosystems and pairs effortlessly with ABB I/O modules and the ABB AC 800M, eliminating compatibility delays during system expansions. Its hot-swappable design allows replacement without powering down the PLC, minimizing downtime during maintenance—an essential feature for 24/7 operations.
The TSXDSZ08R5 excels in industries where precise digital control directly impacts productivity. In automotive manufacturing, it controls robotic welding fixtures, triggering clamp actuation with millisecond precision to ensure consistent joint quality. A midwestern auto plant recently deployed TSXDSZ08R5 modules, reducing fixture alignment errors by 30%.
In water treatment, the module operates solenoid valves for chemical dosing, ensuring accurate timing of disinfectant injections. Food processing facilities use it to control mixing station motors and ingredient feeders, maintaining recipe consistency. Warehousing automation relies on its fast switching to operate conveyor diverters and palletizers, optimizing material flow in distribution centers.
Even in HVAC for industrial facilities, the TSXDSZ08R5 regulates damper actuators and fan motors, adjusting environmental conditions based on real-time sensor data.
- TSXDSZ04R5: 4-output variant of TSXDSZ08R5 for smaller control loops.
- TSXDSZ16R5: 16-output higher-capacity model, expanding TSXDSZ08R5’s control range.
- TSXDSZ08T5: Transistor-output version of TSXDSZ08R5 for high-frequency switching.
- TSXDSZ08R5P: Extended-temperature variant (-10°C to +70°C) of TSXDSZ08R5.
- TSXDSZ08R5E: Ethernet-enabled TSXDSZ08R5 with direct network monitoring.
- TSXDSZ08R3: Previous generation module, compatible with legacy Modicon systems.
- TSXDSZ08R5C: Compact version of TSXDSZ08R5 for space-constrained cabinets.
Installing the TSXDSZ08R5 requires a clean, dry control cabinet with ambient temperature within its operating range. Ensure proper grounding (≤4Ω) to minimize electrical noise, especially near motor drives. Mount the module on a 35mm DIN rail, leaving 30mm of clearance on all sides for airflow and wiring access.
For maintenance, conduct quarterly visual inspections to check for loose terminals or dust buildup—use compressed air to clean vents. The TSXDSZ08R5 logs output faults in the PLC memory; review these monthly to identify trends like frequent overloads. Tighten terminal screws to 0.5 Nm annually to prevent connection degradation, and replace relays every 5–7 years in high-cycle applications. A technician at a snack food plant recently used these logs to replace a failing relay in a TSXDSZ08R5, avoiding a production line shutdown during peak demand.
The TSXDSZ08R5 is backed by a one-year warranty and free replacement service provided exclusively by Xiamen Xiongba E-commerce Co., Ltd. Branch, not the original equipment manufacturer. To file a claim, customers can contact Xiongba’s technical support team with their purchase invoice and module serial number. Xiamen Xiongba E-commerce Co., Ltd. Branch specializes in industrial automation distribution and global procurement. We provide a one-year warranty and free replacement service, sourcing DCS, PLC, MVME modules, Anybus converters, RTU modules, industrial PCs, low-frequency displays, and SCSI HMIs to solve procurement challenges with competitive pricing. Pre-shipment testing, datasheet verification, and serial-number traceability are available to confirm authenticity, ensuring reliable industrial automation spare parts.
