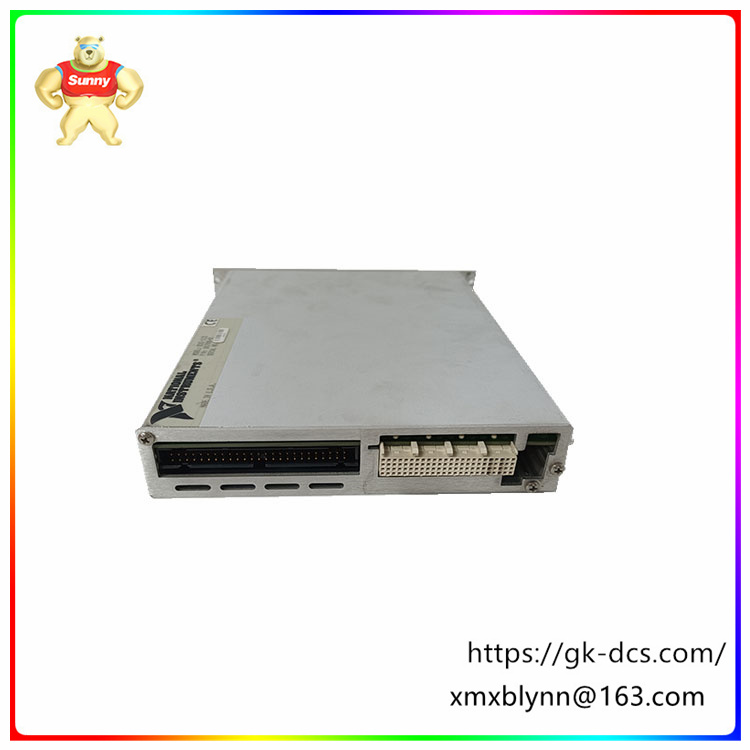

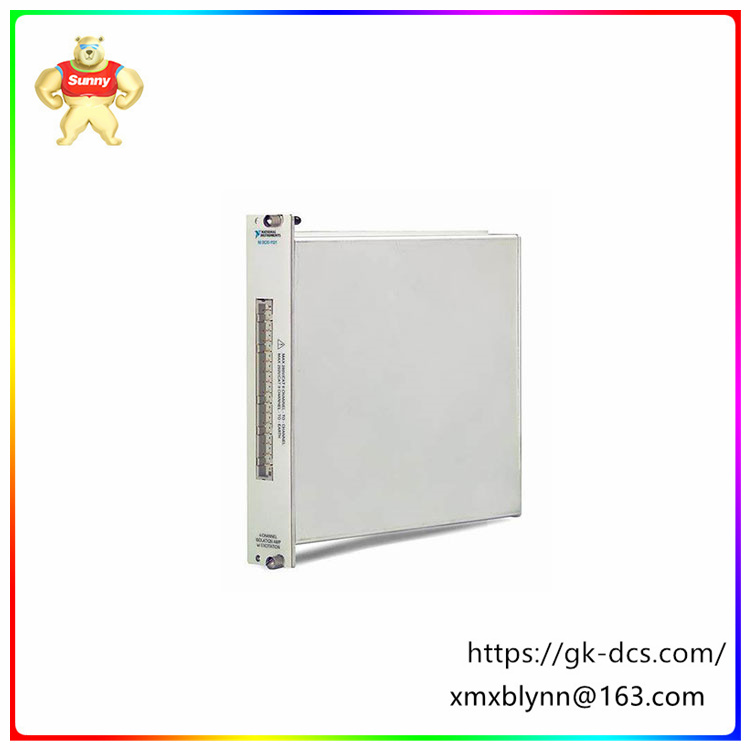

The SCXI-1121 is a 4-channel exciter isolation amplifier module from National Instruments (NI) designed for a variety of sensor and signal inputs that require isolation. The module provides individually configurable isolation amplifiers, filters and excitation sources, allowing each channel to be flexibly configured according to specific needs.
Key features and benefits of the SCXI-1121 include:
Multi-channel isolation: The module has 4 independent channels, each channel is equipped with isolation amplifier, effectively isolated the signal interference between different channels, improve the accuracy and stability of the measurement.
Flexible configuration: Each channel provides individually configurable isolation amplifiers, filters, and excitation sources, allowing users to adjust parameter Settings to meet different measurement requirements according to specific application scenarios.
Wide applicability: The SCXI-1121 is suitable for a wide range of sensors and signal inputs, including strain gauges, resistance temperature detectors (RTDS), thermocouples, etc., making it promising for a wide range of applications in various industrial automation, test and measurement fields.
Programming support: The module supports a variety of programming languages and software environments, and users can use appropriate programming languages to control and process the module according to their own programming habits and needs.
The SCXI-1121 has a wide range of application scenarios, including but not limited to:
Industrial automation: In industrial automation systems, the SCXI-1121 can be used to monitor and control various sensor signals, such as temperature, pressure, flow, etc., to achieve accurate data acquisition and transmission.
Test and measurement: In the laboratory or on the production line, the SCXI-1121 can be used for accurate measurement of various physical quantities, such as material performance testing, product quality inspection, etc.
Environmental monitoring: SCXI-1121 can also be used in environmental monitoring fields, such as meteorological observation, water quality monitoring, etc., to help users understand changes in environmental parameters in real time.
In summary, the SCXI-1121 is a high-performance, flexible isolation amplifier module that provides a reliable measurement solution for a wide range of sensors and signal inputs.
The SCXI-1121 is a high-performance 4-channel exciter isolation amplifier module from National Instruments (NI) designed for a wide range of sensor and signal inputs where isolation is required. The following are the main advantages and disadvantages of SCXI-1121:
Advantages:
Multi-channel isolation design: The SCXI-1121 provides four independent channels, each of which is equipped with an isolation amplifier to effectively isolate signal interference between channels and enhance measurement accuracy and stability.
Flexible configuration: Each channel can be configured independently, and users can set different isolation amplifiers, filters and excitation source parameters for each channel according to the specific application requirements, so as to achieve accurate measurement and signal processing.
Wide range of application scenarios: Thanks to its highly flexible configuration and excellent performance, the SCXI-1121 is suitable for a variety of application scenarios, such as industrial automation, environmental monitoring, test and measurement, etc., providing users with a wide range of choices.
Programming support: SCXI-1121 supports a variety of programming languages and software environments, and users can easily use their familiar programming tools for module control and data processing.
Cons:
High cost: As a high-performance isolation amplifier module, the SCXI-1121 is relatively expensive to manufacture, which may make it prohibitive for some users with limited budgets.
Technical threshold: While the SCXI-1121 offers flexible configuration options and powerful features, its use also requires a certain level of expertise and technical background. For beginners or non-professionals, there may be a certain cost of learning and training.
External dependencies: To maximize the performance of the SCXI-1121, users may need to work with other NI products or third-party devices, which may increase the complexity and cost of the overall system.
