The SCXI-1124 is a terminal module in a modular measurement system manufactured by National Instruments (NI). It is mainly used to connect and wire measurement signals for data acquisition, testing and control in modular measurement systems. This module is commonly used to connect the signal leads of sensors, signal sources and other devices to the measurement system. These ports are usually used to connect measurement signals, voltages, currents, etc.
Specifically, the SCXI-1124 terminal module is designed with signal stability and accuracy in mind, ensuring the accuracy of measurement data. In addition, its compact structure and easy installation and disassembly can greatly simplify the construction and maintenance process of the measurement system. At the same time, because it is a modular design, it has good scalability and can be increased or reduced according to actual needs.

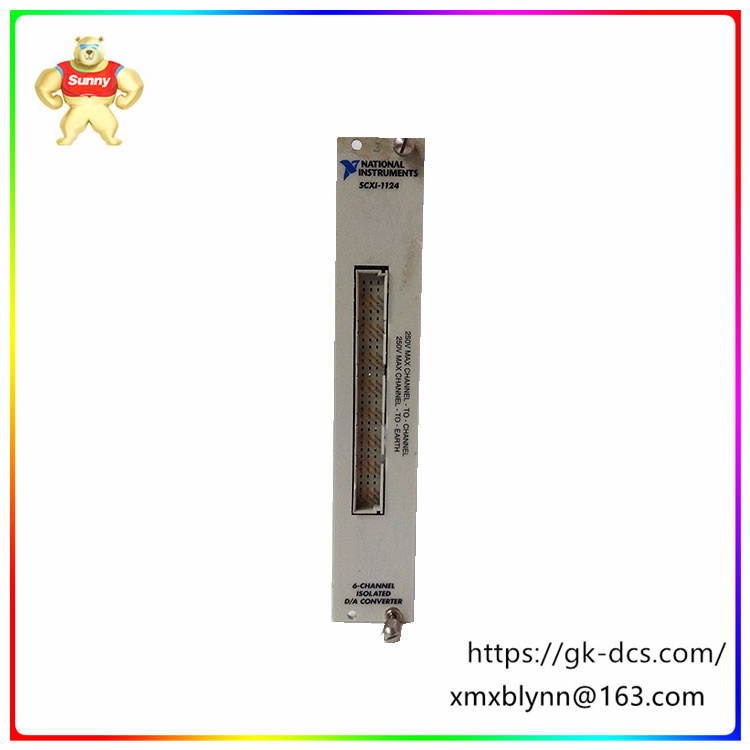

The 6-channel analog output module for SCXI - SCXI‑1124 is an isolated source for DC (low bandwidth) voltage or current signals. You can configure each individually isolated digital-to-analog converter (DAC) channel for voltage or current output. For voltage, you can choose any of three unipolar or three bipolar ranges. The software-configurable SCXI‑1124 has an onboard EEPROM for storing calibration constants. It is ideal for applications where processes need to be controlled by isolating voltage or current outputs. If more channels are required, you can combine other signal conditioning I/O modules in the SCXI system, using multiple SCXI‑1124 modules. The module is digitally controlled via the SCXI bus, so multiple SCXI‑1124 modules can be controlled using only one multi-function I/O device.
In practical applications, SCXI-1124 terminal modules are widely used in various industrial, scientific research and teaching fields, such as power electronics, automation control, signal processing, communication technology and so on. In these fields, the SCXI-1124 terminal module has won wide recognition and praise for its stable and reliable performance and convenient operation.
Overall, the SCXI-1124 terminal module is an integral part of the National Instruments modular measurement system, which provides strong support for a variety of measurement tasks with its outstanding performance and wide range of applications.
