SCXI-1193 NI High density RF relay module

Brand: NI
Product name: High density RF relay module
Product model: SCXI-1193
Order number:
Origin: USA
Available for sale: the whole country, abroad
Import or not: Yes
Warranty period: One year

The nickel SCXI-1193(Part number :776572-93) is a high-density, 32-channel RF multiplexer switch module that can be arranged as an unterminated multiplexer, an externally terminated multiplexer, or a dimensional universal
Sparse matrix. Each device can withstand signal frequencies from DC to more than 500 MHz. The module has a slot and utilizes high-density propulsive MCX connectors for discrete but easily manageable cloths
Thread. The module cannot direct the signal to the high voltage analog bus. The SCXl-1193 was created for integration with high-frequency devices, including the PXI-5404 frequency generator and the PXI-5112 high-speed digitizer.The SCXI 1193 can implement the following topologies: four-way 8 x 1 multiplexer, four-way 4 x 1 terminated multiplexer, two-way 16x 1 multiplexer, two-way 8 x 1 terminated multiplexer, 32 x 1 multiplexer
User 16x 1 terminates the multiplexer and independent module. This RF multiplexer switch module can be used for a variety of different cables. These cables include :MCX-MCX cable, MCX-BNC cable,


MCX-SMB cable or MCX-SMA cable. Each cable is 0.3 meters or 1.0 meters long. A 50 ohm MCX terminal is also available. When the 50 ohm MCX terminal is located halfway through the 32 channels,
Donkeys can use this module as an end multiplexer. The DC power requirements for this device are: + 5 volts DC at 50 mah and + 18.5 volts to + 25 volts DC at 170 mah

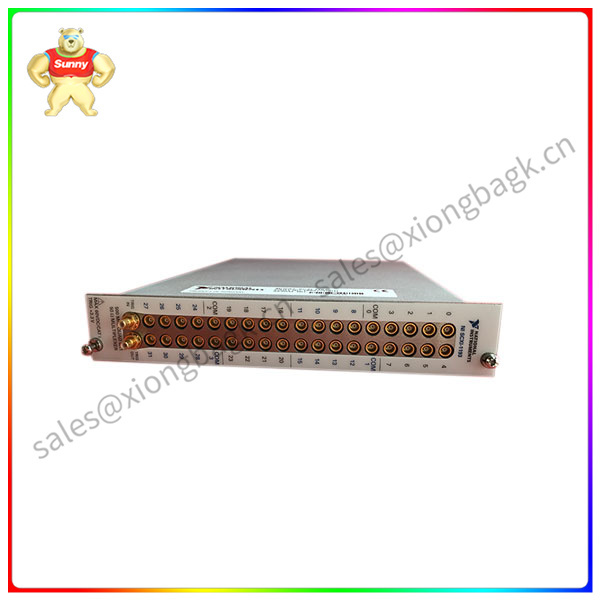

From -18.5 volts to -25 volts direct current. The NI SCXI-1193 module has 36 MCX jacks for I/O connectors, 2 SMB jacks for trigger connectors, relays made of silver palladium and gold,
The maximum scan rate is 100 operations per second. The device is of electromechanical latching relay type.
