Brand: Siemens
Model: 6SL3224-0BE31-1AA0
Function: Inverter

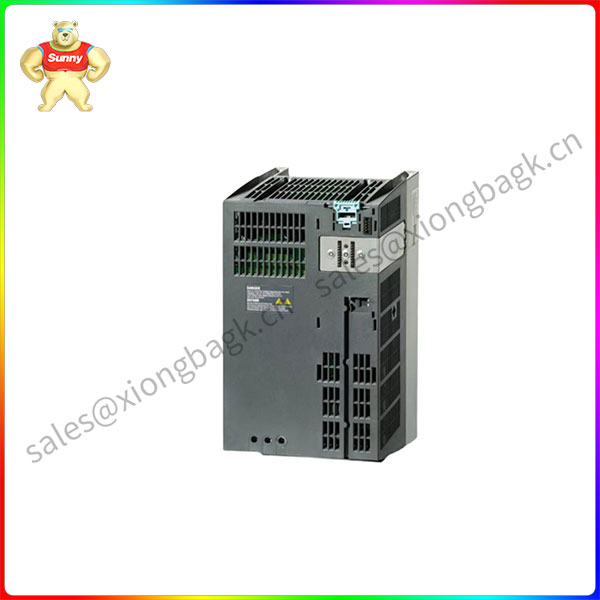

Siemens 6SL3224-0BE31-1AA0 power module inverter
Short circuit detection: In the case of ensuring safety, the relevant part of the circuit is directly short-circuit, such as: the output value of the differential transmitter is too small, the pressure guide tube can be disconnected, and the differential pressure signal is directly led to both sides of the differential pressure transmitter from the primary pressure valve, and the output of the transmitter is observed to determine the blocking and leakage connectivity of the pressure guide pipeline. In the maintenance of the instrument, due to the differential pressure transmitter pressure tube discharge is not timely, or the medium is dirty, sticky and other reasons, positive and negative pressure tube blockage is a frequent occurrence, usually the phenomenon of positive pressure tube blockage is: the transmitter output drops, rises or does not change. When the flow rate increases, the influence on the output of the transmitter (the output signal of the transmitter itself) is due to the blockage of the positive pressure tube, then when the actual flow rate is FF1, P1+=P2+, when the actual flow rate is reduced from F1 to F2, the static pressure in the pipeline will also decrease accordingly, and the reduction value is set to P. At the same time, when the actual flow rate drops to F2, the value of P2- also increases due to the decrease of the fluid flow rate in the pipe, and the increase value is set as P.
The advantages and disadvantages of 6SL3224-0BE31-1AA0 inverter are as follows:
Advantages:
| Parameter |
Value |
| Product Model |
Siemens 6SL3224-0BE31-1AA0 |
| Manufacturer |
Siemens |
| Product Type |
Industrial Automation Control Module (Frequency Converter Module) |
| Power |
380-480V AC (3-phase), 11kW Rated Output Power, 8W Control Circuit Consumption |
| Communication / Protocol |
PROFINET, Modbus RTU, EtherNet/IP, PROFIBUS DP |
| Operating Temperature |
-10°C – 60°C (14°F – 140°F), 5% – 95% RH (Non-Condensing) |
| Mounting |
DIN Rail Mount (35mm Standard) |
| Dimensions (HxWxD) |
150mm x 60mm x 140mm (5.9" x 2.4" x 5.5") |
| Weight |
1.8kg (3.97 lbs) |
| Typical Interfaces |
4 Digital Inputs, 2 Digital Outputs, 1 Analog Input (0-10V/4-20mA), 1 RS-485 Port, 1 Ethernet Port (RJ45) |
| Compliance |
IEC 61800-5-1, CE, UL 508C, RoHS 3.0, ISO 9001 |
Energy saving: The inverter can automatically adjust the motor speed according to the load, avoiding unnecessary energy waste and saving energy.
High precision: the inverter can accurately control the motor speed to meet the needs of different loads.
Flexible control: 6SL3224-0BE31-1AA0 inverter can adjust the motor speed by controlling voltage, frequency and other parameters to achieve a variety of control modes, with high flexibility.
Low noise: The inverter can control the motor speed smoothly and reduce noise generation.
Increase motor life: Frequency converter can reduce the number of motor start and stop and mechanical impact, extend motor life.
Good stability: 6SL3224-0BE31-1AA0 inverter can adjust the running state of the motor, which can effectively avoid overload or underload problems caused by load changes in the motor, and ensure the stable operation of the motor.
Cons:
High price: Compared with traditional fixed frequency motors, frequency converters are more expensive, so the cost is higher in terms of initial investment.
Maintenance is difficult: the frequency converter has more electronic components, maintenance requires professional skills and equipment, and once there is a failure, the maintenance cost is also high.
Interference problem: The frequency converter will produce electromagnetic interference, which may interfere with other electronic equipment, so corresponding interference suppression measures need to be taken.
