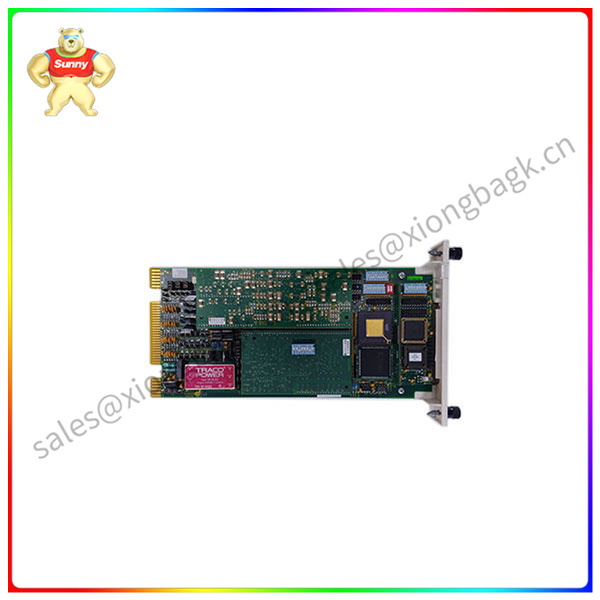

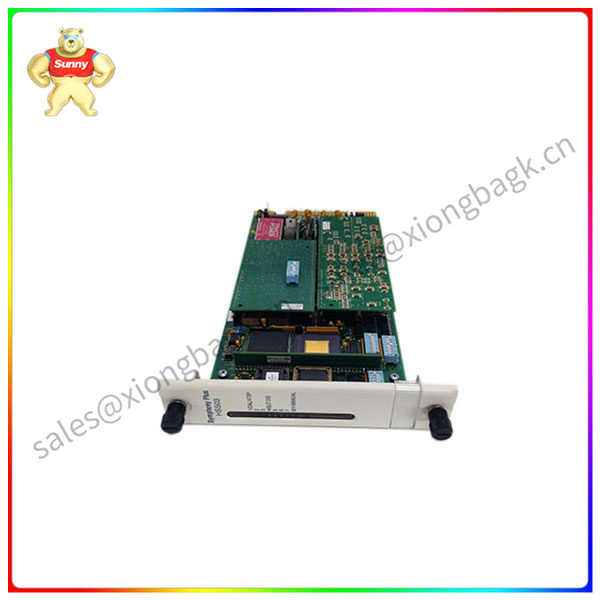

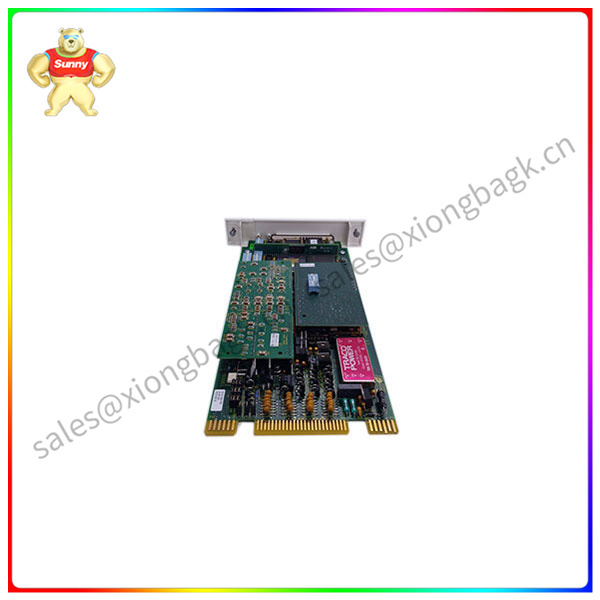

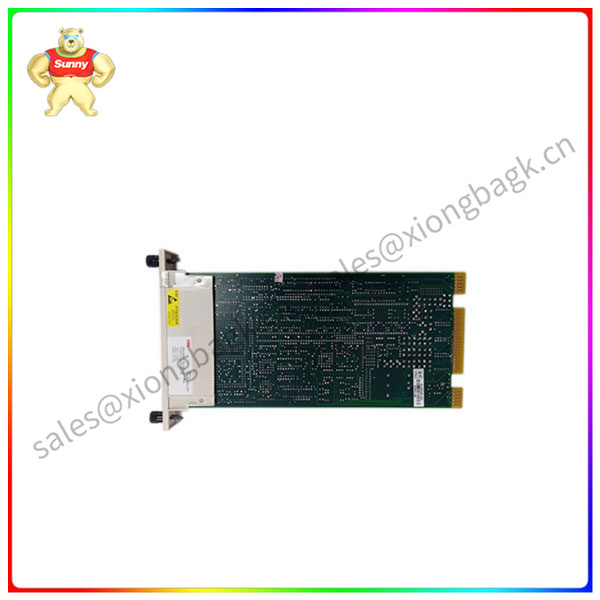

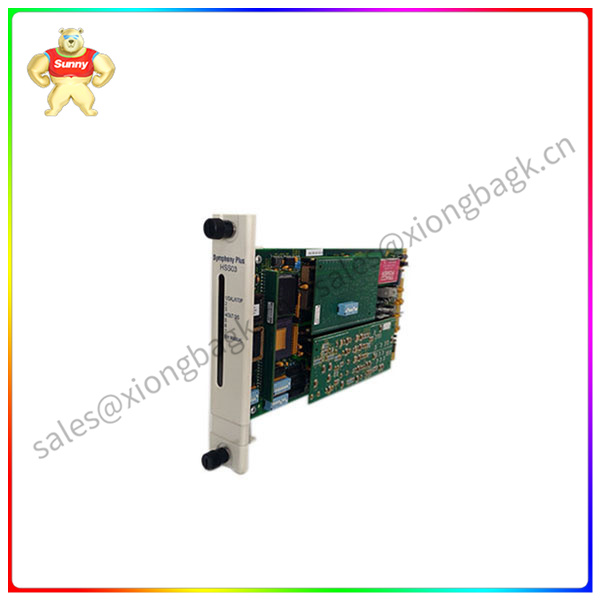

Technical description: SPHSSO3 hydraulic servo module Symphony Plus turbine control HR series
Product ID:SPHSS03 ABB Model Name :SPHSSO3 Catalog Description: Hydraulic servo module Detail Description :SPHSS13 Category Product Control System Symphony Plus Turbine Control HR series turbine module
SPHSSO3 Additional information Media Description: Hydraulic servo Module replaced by SPHSS13 Product Type :I-O_ Module Order HS Code :853890 Parts applicable only or primarily to heading 85.35,
Device 85.36 or 85.37. Other Customs tariff Code :8538908180 Product net depth/length: 297.18mm Product net height: 35.56mm product net mirror: 175.26mm Product net weight :0 kg Environmental protection
WEE category :5. Small devices (external size does not exceed 50 cm) Number of batteries :0
Electro-hydraulic servo system is an important control equipment in the field of automation, which is widely used in the field of industrial control with high control precision and large output power. Liquid as a power transmission and control medium, with electricity
Although the force comparison has many inconvenient points and the price is more expensive, it has the characteristics of fast response speed, large power mass ratio and large load resistance stiffness, so the electro-hydraulic servo system requires high control accuracy and high transmission
The control field with high power has a unique advantage. The electro-hydraulic servo control system is an automatic control system of mechanical quantity based on hydraulic power and electrical access to realize signal transmission and control. Controlled by system
Different mechanical capacity, can be divided into electro-hydraulic position servo system, electro-hydraulic speed servo control system and electro-hydraulic control system three.
China's electro-hydraulic servo development level is still in a stage of development, although in the conventional electro-hydraulic servo control technology, we have a definite development. But in the electro-hydraulic servo high-end products and application technology
On the other hand, there is still a big gap between us and the technical level of foreign developed countries. Electro-hydraulic servo technology is a comprehensive technology that integrates mechanical, hydraulic and automatic control. It is necessary to develop domestic electro-hydraulic servo technology
Must be from the mechanical, hydraulic, automatic control and computer and other technical fields to advance simultaneously.
