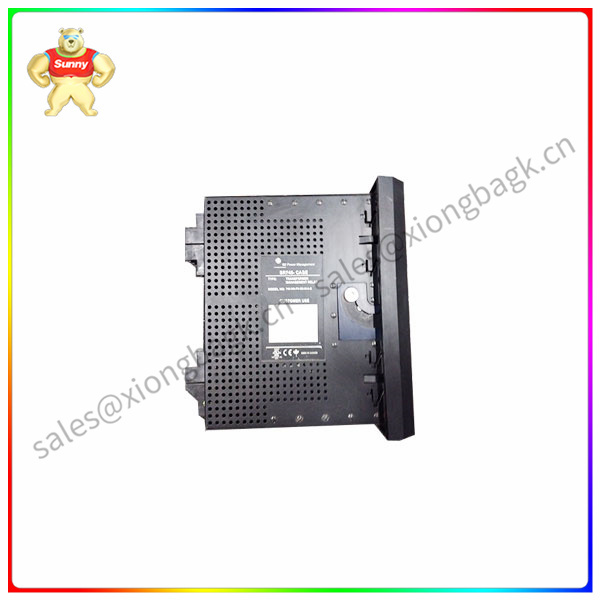

SR745-W2-P5-G5-HI-A-. Transformer protection relay

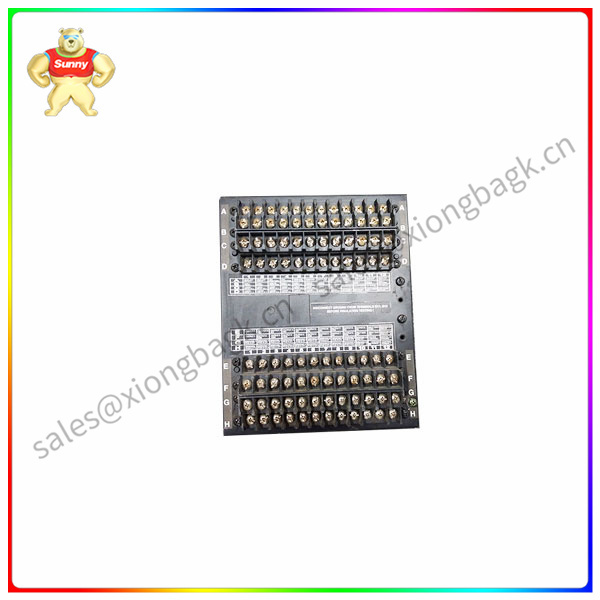

The SR745-W2-P5-G5-HI-A- is a highly configurable transformer protection relay that can work with small to large transformer systems. It has features such as adaptive harmonic suppression that help keep the system safe during inrush events. Users can also adjust how relays interact with the system by adding, removing, or editing setting points. In addition, the model features an enhanced display and an expanded keyboard to make relay input and navigation easier. The back terminals contain a large number of ports for a large and highly configurable number of connections.
The functions of SR745-W2-P5-G5-HI-A- mainly include
Transformer protection: This is the most important function of the equipment, which can provide comprehensive protection for the transformer, including over-current, over-voltage, under-voltage, over-temperature and other fault situations.
System monitoring: It can also monitor the other equipment of the system, as well as the operating status of the transformer, so as to ensure the stable operation of the power system.
Its features include:
Adaptive function: The device has an adaptive function, which can automatically adjust its own operating state according to the different needs of the system, so as to better adapt to the needs of the system.

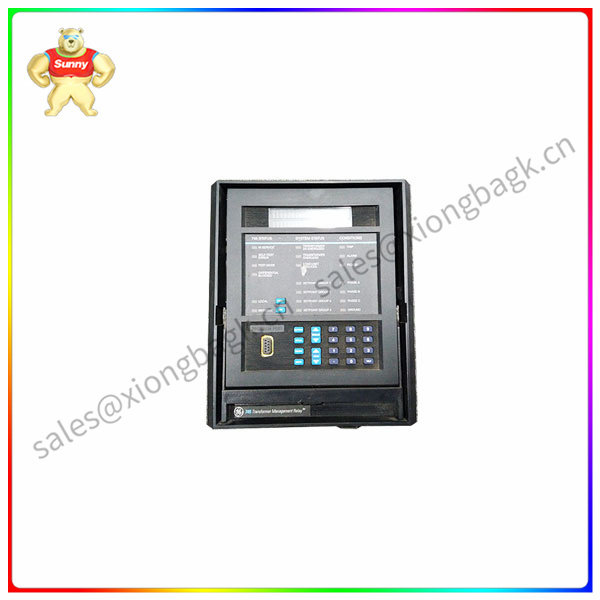

Easy to operate: The device also features an enhanced display and extended keyboard to make relay input and navigation easier.
Overall, the SR745-W2-P5-G5-HI-A- is a full-featured, easy-to-operate, and easy-to-configure transformer protection device.
