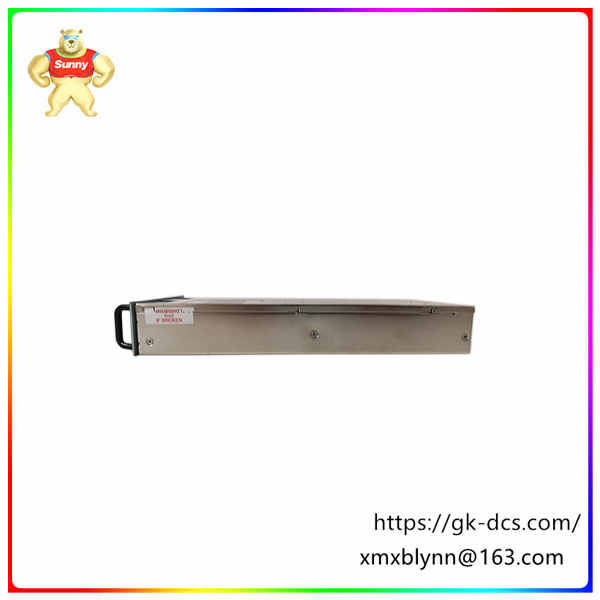

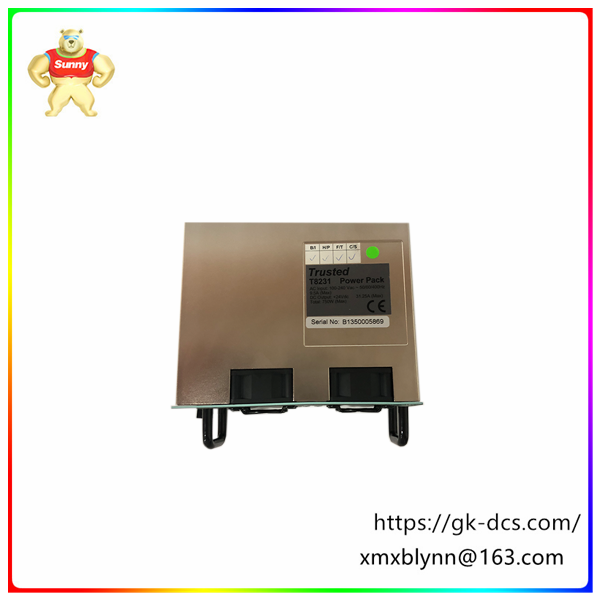

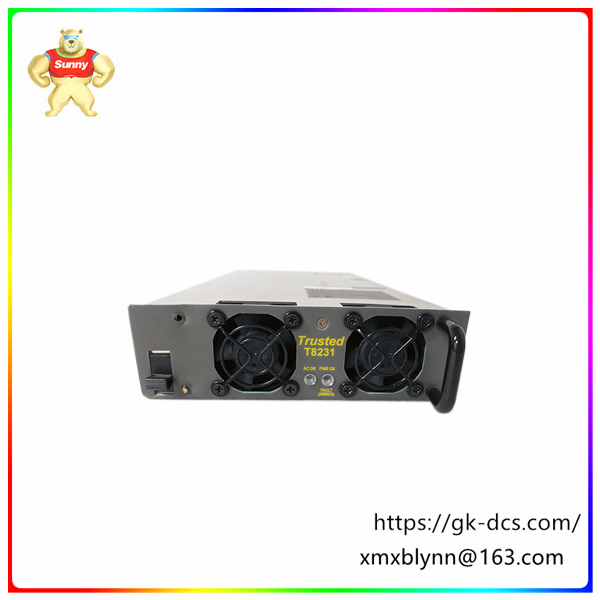

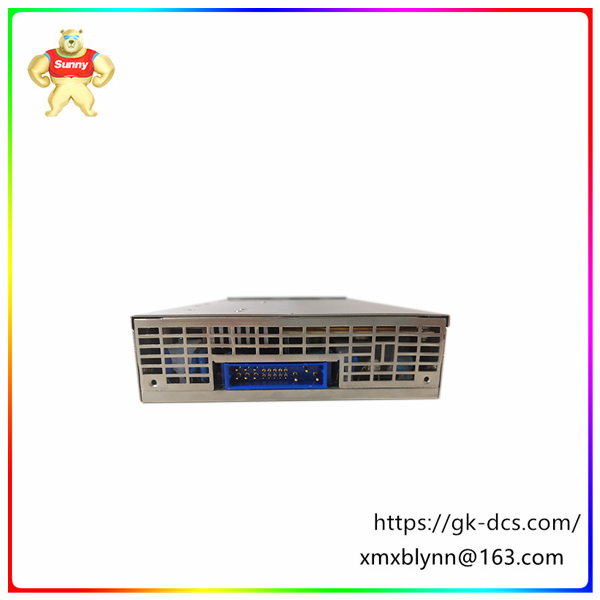

T8231 | Power supply unit | Fault tolerance with HIFT TMR architecture

Brand: ICS Triplex
Model: T8231
Product type: Power supply unit
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months

Product parameters:
Height: 43 mm
Width: 483 mm
Depth: 340 mm
Shipping weight: 4 Kg

Features:
Redundancy and n+1 configuration.
Hot replaceable power pack.
Current sharing.
Traffic restricted.
Power factor correction.
Diagnose the contact.
Configurable output voltage.
Input/output fault diagnosis for each power group.

T8231 is a power supply group. The Power Pack resides in the TrustedTM controller chassis and in the Intermodule bus (IMB) and extender bus in the controller chassis. The extender bus allows multiple chassis system cable connections using UTP while maintaining fault-tolerant, high-bandwidth IMB functionality.

The module provides fault containment controller enclosures for the Expander bus, the module itself, and the IMB, ensuring that the impact of these potential failures is localized and system availability is maximized. The module has fault tolerance of the HIFT TMR architecture. Comprehensive diagnostics, monitoring and testing quickly identify faults. Hot standby and module standby support slot configuration, allowing automatic and manual repair policies.
Main feature
High density and flexibility:
The T8231 is a high-density power system with a compact design that saves space.
The system is flexible and can be configured with different number of power groups to meet different power and redundancy requirements.
Input and output:
The universal input voltage range is 85-264 VAC, and mainline voltage inputs of 110 Vac or 240 Vac are supported.
The output voltage is 24 VDC and adjustable, suitable for various application scenarios.
Power and Redundancy:
Each power pack can provide 750 W of power, and the entire system can provide n+1 redundancy up to 2250 W or up to 1500 W depending on the configuration.
By increasing the number of power supply groups, the total power and redundancy of the system can be further improved.
Safety and Protection:
It is equipped with several safety features including overload protection, short circuit protection and overvoltage protection to ensure safe operation of the system.
Monitor input and output conditions and use relay contacts to report out-of-range faults and overtemperature/fan failures.
Application field
Due to its high reliability, flexibility and efficiency, the T8231 is widely used in applications requiring high-quality power supplies, such as industrial automation, control systems, and data centers. Especially in critical applications where power supply stability is required, the T8231 takes advantage of its triple modular redundancy system to ensure uninterrupted operation.
