Trusted@TMR 24 Vdc digital input module interfaces to 40 field input devices. Fault tolerance is achieved with 40 input channels through a triple module redundancy (TMR) architecture within the module.
Each electric field input is tripled, and the input voltage is measured using a sigma-delta input circuit. The obtained field voltage measurement results were compared with the threshold voltage configurable by the donkey
Reported field input status. This module detects open and short circuits in field cables when line monitoring equipment is installed on site. Line monitoring features include individual configuration for each input channel. Triple voltage measurement coupled with on-board diagnostic testing provides comprehensive fault detection and fault tolerance.
The module provides on-board event sequence (SOE) reports with a resolution of 1 millisecond. A state change triggers an SOE entry. The state is determined by the voltage threshold configured on a per-channel basis.
Features:
Each module has 40 three-mode redundant (TMR) input channels.
Comprehensive, automated diagnostics and self-tests.
● Selectable lines monitor each channel to detect shortcomings in open and short field wiring.
● Resistance to 2500 V pulsed optical/electrical isolation barrier.
● Airborne Event Sequence (SOE) report with a resolution of 1ms.
The 50/60 Hz digital filter can be configured to eliminate field noise.
● Modules can be configured using a dedicated Companion(adjacent)Slot or smarslot for online hot replacement (multiple modules can be installed in one spare slot)

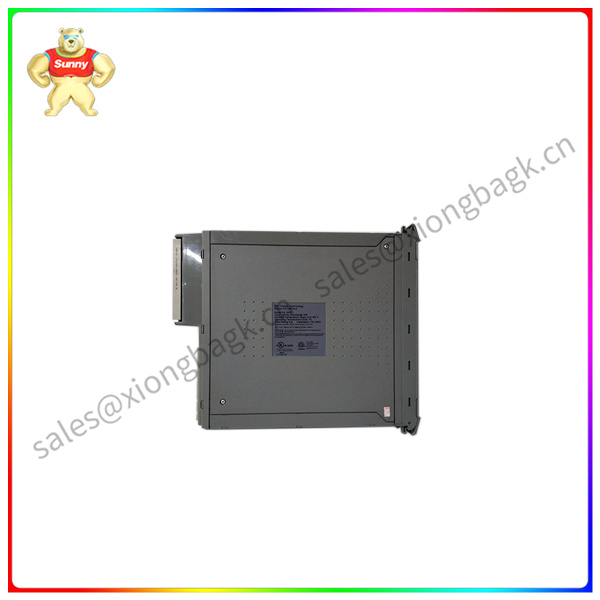

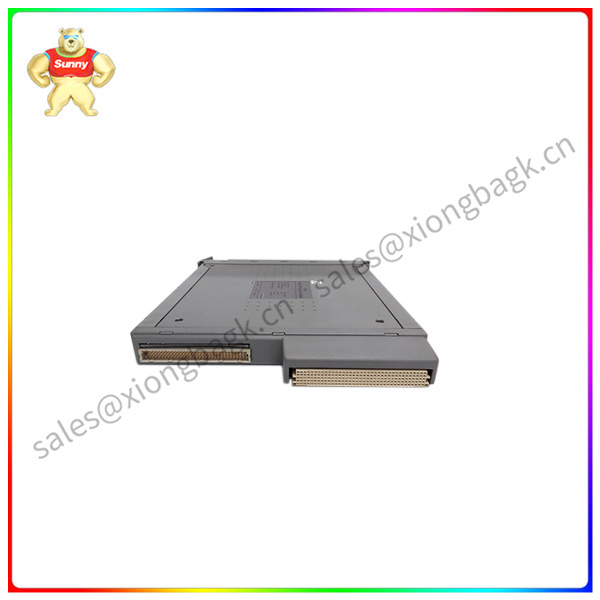

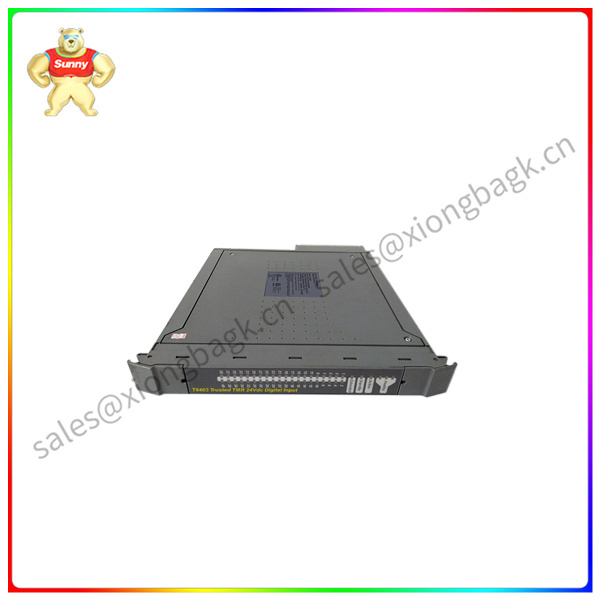

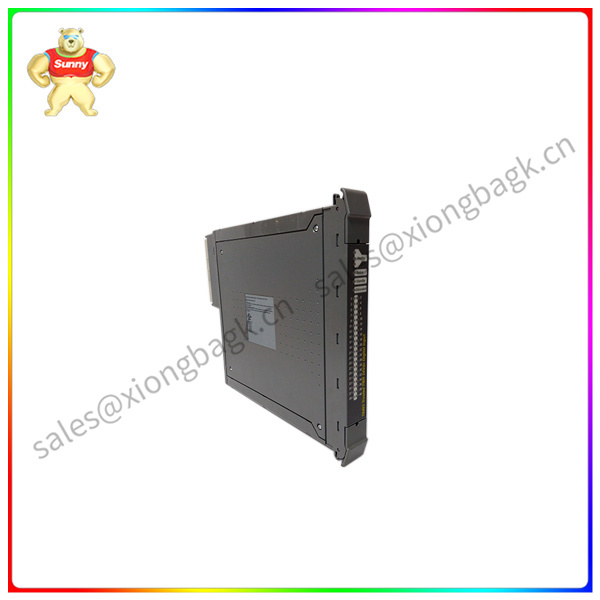

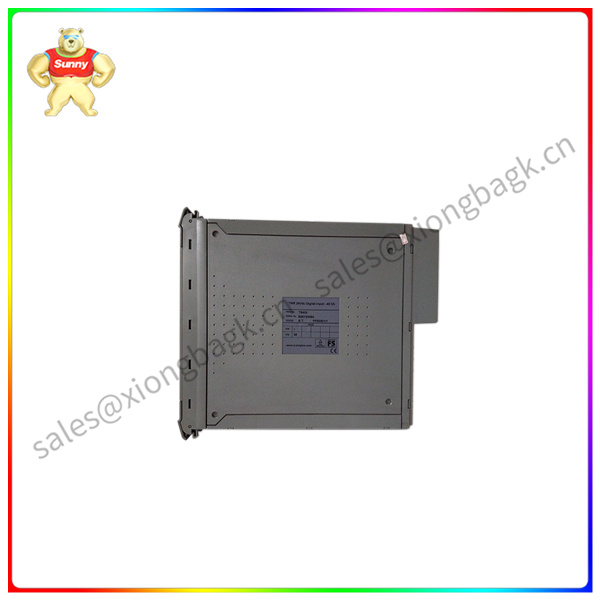

Item number (market oriented number) : T8403
Product design: Trusted TMR 24Vdc digital input module
Manufacturer: ICS TRIPLEX
Country of Origin: USA
