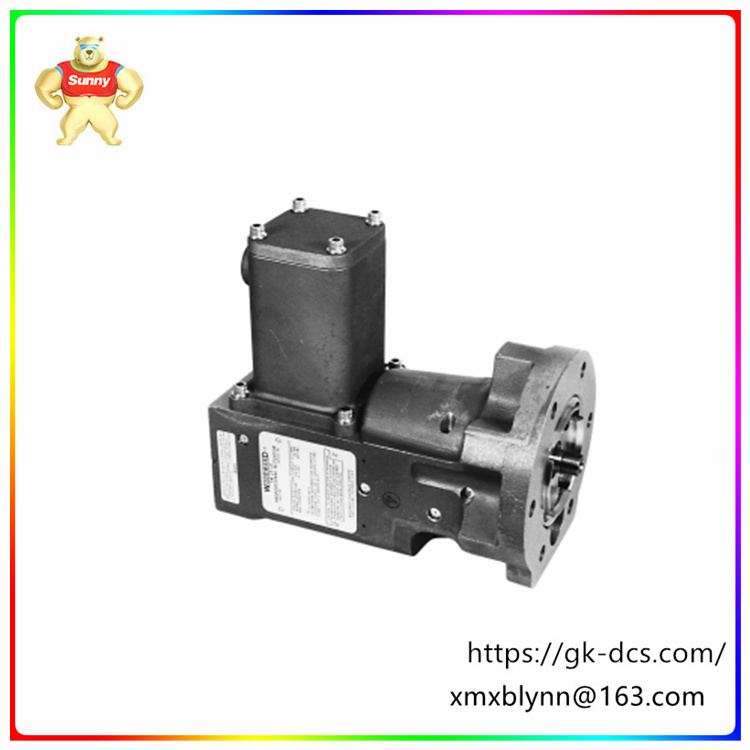

TM-25LP TM-200LP | Actuator | Fast adjustment

Brand: WOODWARD
Model: TM-25LP TM-200LP
Product type: Actuator
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months

The TM-25LP and TM-200LP actuators are electro-hydraulic proportional actuators designed for electrical control with  Woodward 43027 and 2301 and can be connected directly to the fuel flow control valve with an adapter. They have one
Aluminum housing with hardened stainless steel components. In the actuator,  the torque motor energizes the servo valve by electric control to produce a pressure difference,  which is applied to both ends and operates the secondary slide valve. The supply pressure is regulated by a sliding  valve with a moving double-acting servo piston and provides 25 mm (1 in) linear output shaft travel. Internal mechanical  feedback is standard. The actuator is calibrated in the plant for the deviation current in the direction of the minimum  fuel in case of input loss.
The hydraulic fluid is sealed between the armature and the servo-valve housing by a pre-formed packing ring with the  torque motor,  eliminating fouling magnetic contaminants. A 40µm nominal /70µm absolute filter fitting is provided at the hydraulic  supply port to provide protection in the event of an upstream screening failure.

Technical characteristics
High precision: TM25LP electro-hydraulic actuator adopts advanced control algorithm and precise mechanical structure to achieve high precision position, speed and pressure control.
High reliability: The actuator has reasonable design, excellent materials, exquisite manufacturing technology, and can operate stably in harsh industrial environments for a long time.
Fast response: It has a fast response speed and can quickly respond to changes in the control signal to achieve rapid adjustment.
Easy maintenance: Compact, modular design for easy installation, commissioning and maintenance.
