Product Overview

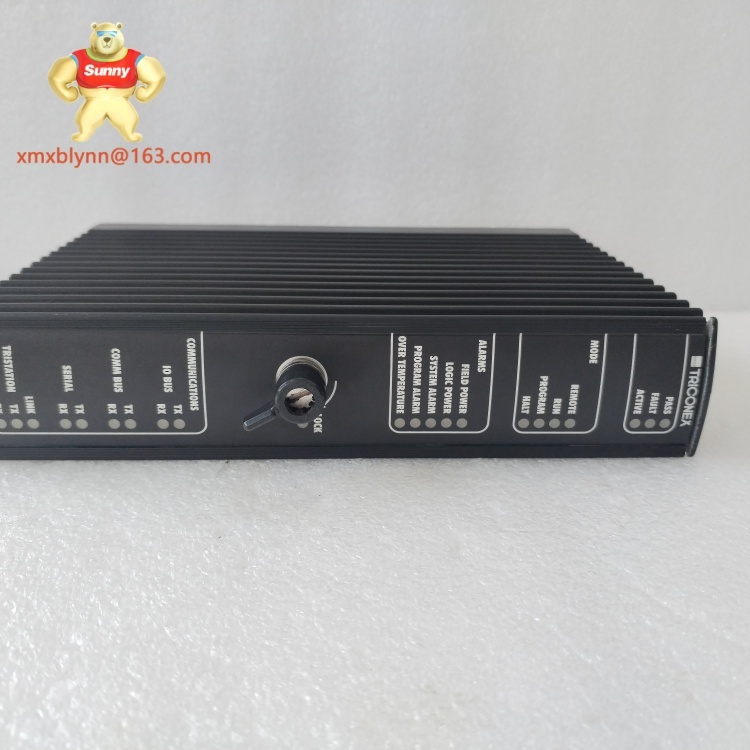

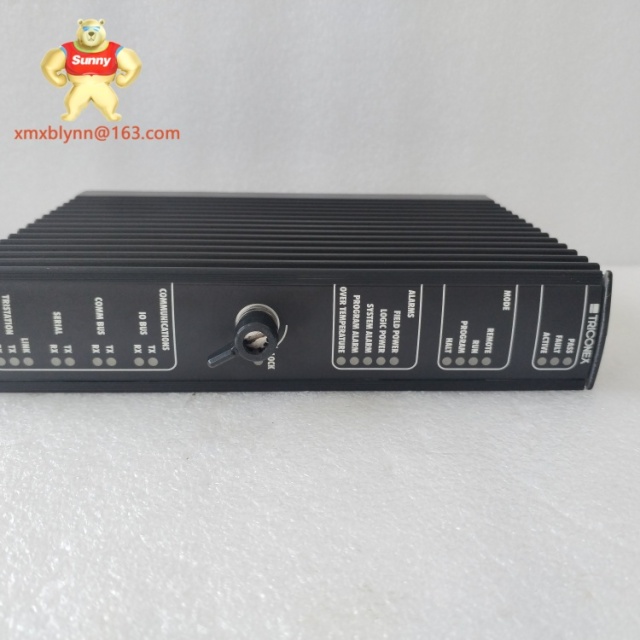

The TRICONEX 3101 is a high-integrity Triple Modular Redundant (TMR) Main Processor Module designed for TRICONEX Trident safety instrumented systems (SIS), serving as the computational core for mission-critical control and safety applications. As the backbone of Trident systems, the TRICONEX 3101 executes complex control logic, manages real-time data processing, and ensures seamless communication between I/O modules, logic solvers, and external systems. Its TMR architecture—three independent processing channels with built-in voting and fault detection—guarantees continuous operation even in the event of single or dual channel failures, making it ideal for industries where downtime or safety lapses are unacceptable.
In automation setups, the TRICONEX 3101 acts as the decision-making hub, translating sensor inputs into actionable outputs for emergency shutdowns (ESD), burner management, and turbomachinery control. Its role extends beyond processing: it provides advanced diagnostics, self-testing capabilities, and redundant communication interfaces to maintain system integrity. What sets it apart is its ability to handle both safety-critical tasks (e.g., SIL 3-rated functions) and non-safety control logic within a single platform, reducing hardware complexity and integration costs. This versatility, combined with rugged design, positions the TRICONEX 3101 as a cornerstone for reliable, high-performance industrial automation.
Technical Specifications
Key Features and Benefits
The TRICONEX 3101 leverages TRICONEX’s proven TMR architecture, where three identical processing channels independently execute control logic. Outputs are voted to ensure 一致性，and any deviating channel is automatically isolated, preventing erroneous commands. This design eliminates single points of failure, critical for applications like offshore platform ESD systems or nuclear reactor control.
SIL 3 certification validates its capability to handle the highest safety integrity requirements, while advanced diagnostics continuously monitor module health, including voltage levels, temperature, and communication integrity. Real-time alerts via the Trident system enable proactive maintenance, reducing unplanned downtime.
Its dual Ethernet ports and support for protocols like Modbus TCP/IP facilitate integration with SCADA systems and enterprise networks, enhancing operational visibility. The TRICONEX 3101 also supports hot-swappable replacement, allowing module upgrades or repairs without system shutdowns—a critical advantage in 24/7 industrial environments.
Built to withstand extreme conditions (e.g., vibration, moisture, and electrical noise), the module excels in harsh settings like chemical plants or desert refineries. Its compact form factor and standardized Trident compatibility simplify scalability, enabling seamless expansion of safety systems as operational needs grow.
Application Scenarios
The TRICONEX 3101 is widely deployed in industries where safety and reliability are paramount:
- Oil & Gas: In offshore platforms, it controls ESD valves and monitors wellhead pressures, ensuring rapid shutdowns in leaks or equipment failures. Onshore refineries use it to manage distillation units and flare systems, balancing safety with production efficiency.
- Power Generation: In coal-fired plants, the module orchestrates burner management systems (BMS), ensuring safe ignition sequences and fuel cutoff during flame loss. For nuclear facilities, it safeguards reactor cooling systems and radiation monitoring.
- Chemical Processing: It oversees batch reactor interlocks, preventing hazardous reactions by verifying temperature, pressure, and ingredient ratios. In petrochemical plants, it integrates with fire and gas detection systems to trigger evacuation protocols.
- Pharmaceuticals: The TRICONEX 3101 ensures sterile environments by controlling cleanroom HVAC systems and validating process parameters for drug manufacturing, adhering to strict regulatory standards.
In each scenario, the module’s TMR architecture and real-time processing ensure that safety functions execute flawlessly, even when external systems experience disruptions.
Related Models
- TRICONEX 3201 – Communication module for Trident systems, enabling integration with Modbus devices and plant-wide networks.
- TRICONEX 300656-210 – Digital output module compatible with TRICONEX 3101, used to actuate solenoid valves and relays in safety loops.
- TRICONEX 3101 S2 – Enhanced variant with faster processor (Motorola MPC860, 50 MHz) and expanded memory for complex control algorithms.
- TRICONEX 3301 – Analog input module that pairs with TRICONEX 3101 to process sensor data from pressure transmitters and temperature probes.
- TRICONEX 3401 – High-speed logic solver module for real-time control in turbomachinery applications.
- TRICONEX 3501 – Redundant power supply module ensuring continuous operation of TRICONEX 3101 during voltage fluctuations.
Installation and Maintenance
Installing the TRICONEX 3101 requires a Trident system rack with proper grounding and 24V DC power supply. Ensure the mounting location is free of dust and within the specified temperature range. A qualified technician should verify Ethernet and TriBus cabling (shielded Cat 5e for Ethernet) to minimize signal interference.
For maintenance, conduct quarterly checks of voltage levels and diagnostic logs. Replace the module every 10 years as a preventive measure, even if operational, to mitigate component aging. Firmware updates should be applied during scheduled shutdowns to ensure compatibility with evolving industry protocols. Hot-swappable design allows replacement without system downtime—simply insert the new module, wait for diagnostic confirmation (5–10 minutes), and remove the faulty unit.
Product Warranty
The TRICONEX 3101 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd. Branch, covering manufacturing defects and performance issues under normal use. In the event of failure, we provide free replacement to minimize operational disruption. Our global technical support team offers 24/7 assistance for installation guidance, firmware updates, and troubleshooting, ensuring seamless integration and long-term reliability. This warranty reflects our confidence in the TRICONEX 3101’s robust design and our commitment to delivering mission-critical automation solutions.
