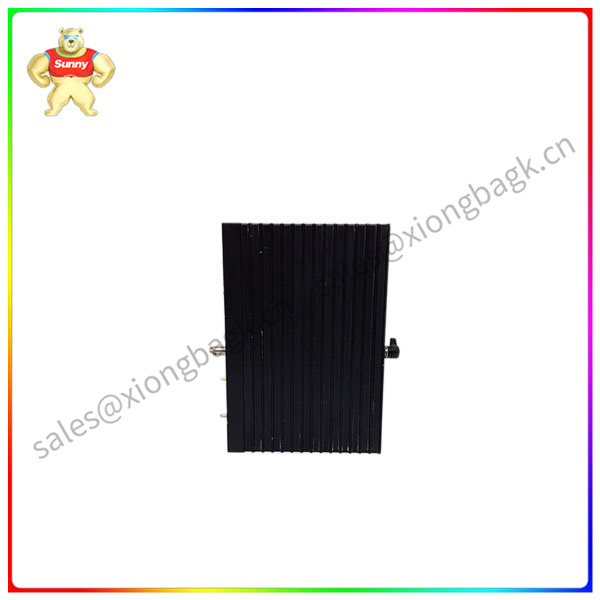

The Triconex 3301 is a safety instrumentation system designed for a variety of industrial applications, especially critical process control. It has advanced fault tolerance and self-diagnostic capabilities, making it ideal for safety-critical processes.
Each TMR digital input module has three separate sets of electronics, called channels, that independently process the module's field data. Each channel places the processed data in an array
On request, the array is transferred to the MP associated with the channel. MPs votes on the data before passing it to the application. The DI module includes complete, continuous inspection of each channel
Fuck. If the diagnostic detects a fault on any channel, the fault indicator lights up and activates the system alert. The fault indicator identifies a channel fault, not an entire module fault. Continuous DI module test
The ability of the system to detect the transition to the opposite state. The DI module is guaranteed to function properly in the event of a single failure and continue to function properly in the event of multiple failures. The DI module supports the hot standby module.
Each DI module is mechanically locked to prevent improper installation in the configured substrate. The Model 3301 DI module can be used on the following substrates: Model 2301 for typical applications. DI External terminal substrate, eye
Solid-state relays in high-voltage applications are input to external terminal panels, or Type 9573-610 DI hazardous site external terminal panels.
Here are some of the key features of the Triconex 3301:
Input/output module: The Triconex 3301 is an input/output module that typically communicates with sensors, actuators, switches, and other external devices. It is used to monitor and control various industrial processes.
Advanced processing power: The module has powerful processing power and can perform complex control and security logic. It supports a multi-tasking operating system that can perform multiple control and security tasks simultaneously.
High reliability: The Triconex 3301 is designed with redundancy and failback in mind, ensuring system continuity and reliability. It also supports a variety of communication interfaces to facilitate data exchange with other control systems and devices.
Adaptability: The Triconex 3301 can be adapted to different application requirements, supporting module expansion and programming to achieve customized control and safety logic.
Data protection: This module has a data protection mechanism to ensure data integrity and security. It also supports data logging and event reporting for easy troubleshooting and analysis.
Environment of use: The Triconex 3301 is suitable for a wide range of industrial applications, including oil and gas, chemicals, and power. It can withstand harsh environmental conditions such as high temperature, low temperature, humidity and corrosion.
In summary, the Triconex 3301 is an efficient and reliable safety instrumentation system for critical control applications in a variety of industrial processes. With its powerful processing power, advanced diagnostic functions and good scalability, it is ideal for industrial automation and security control.
