Manufacturer :Triconex
Product Number :3511

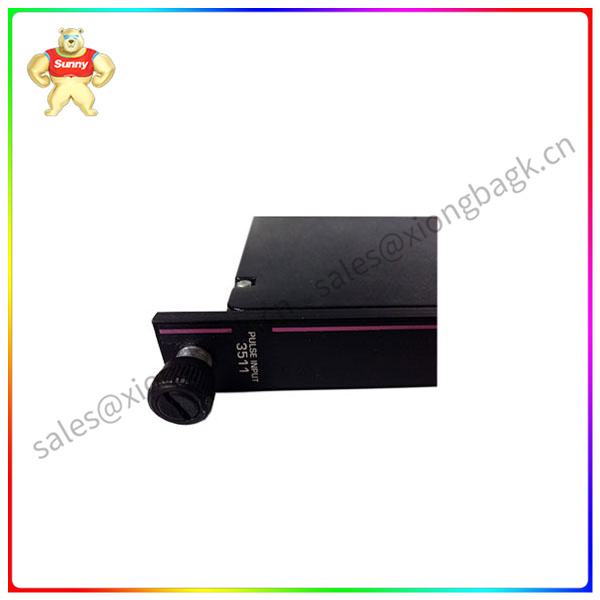

Product type: Pulse input module
Type :TMR
Input signal :8, not public
Resolution: 16 bits
Accuracy :1000 Hz to 20,000 Hz, 0.01%
Color code: Light purple
Weight :3.03 kg
Shipping weight :4 kg
Main Processor Modules and substrates Each Trident system consists of three main processor (MP) modules which are all on a single backplane. Each MP module acts as - a channel Trident system. For details, see 25
Page. The Communication Module and Baseboard Communication Module (CM) is a three-to-one interface MPs that allows the use of industry standard communication protocols. A single Trident controller can support up to two CM in a CM base
The board CM operates independently. The two CMs can provide redundant communication connections or separate communication ports. See page 27 for details. Analog input Modules and substrates Each analog input (AI) module has three E independent
Channels that separately process analog input devices from the field. Each channel transmits data to the MP associated with the channel. Lawmakers vote on the data before passing it to the app.
Each TMR digital output module has three isolated sets of electronics, called channels, that independently receive data from the MP associated with each channel. The use of these channels is patented
The four-way voter circuit votes on a single output signal applied to the load. This circuit is based on A parallel series path, if two of the three switches are channels A and B, or channels B and C, or
Channels A and C) command them to close, and these paths transfer power. The quadruple voting circuit has multiple redundances on all critical signal paths, guaranteeing safety and maximum availability. For each
At this point, the DO module periodically executes the Output Voter Diagnostics (OVD) procedure. In order to allow unrestricted safe operation under various multi-failure scenarios, OVD detects and alerts all of these types of failure points
Failures of cards in the on and off positions are detected in less than 500 milliseconds. Switch A switch or its associated drive circuit that detects all stuck on or off positions. DO module package
Includes complete, ongoing diagnostics for each channel. If the diagnostic detects a fault on any channel, the fault indicator lights up and activates the system alert. Fault indicators identify channel faults, not integrations
One module is faulty. The DO module is guaranteed to function in the event of a single - failure, and to continue to function in the event of some multiple failures. Module Specifies whether the module supports the hot spare disk module. Every DO module is
Secure with mechanical keys to prevent improper installation in the configured substrate.
These baseboards are available for type 3401 DO modules: Type 2401 for typical applications. Model 2401L for low current applications requiring integral current limits. Each output is equipped with a series resistance of 1 80 ohms.
DO external terminal substrate, relay output external terminal panel for high voltage applications, or Type 9671-610 DO hazardous site external terminal panel.
For data processing and control functions in industrial automation and process control. It has powerful data processing and control functions, which can process and analyze data from various sensors and devices, and execute corresponding control logic to achieve real-time control of industrial processes and equipment.
The Triconex 3511 module may be a module designed for distributed control systems and can be used with other DCS system components. It may have the ability to communicate and collaborate with other modules and controllers to achieve system-level data exchange and collaborative control. At the same time, it may have high performance processing power, able to handle large amounts of data and complex control algorithms. It supports Ethernet, serial port, Modbus and other commonly used communication protocols and interfaces to realize the connection with external systems.
The Triconex 3511 module is likely to have high reliability and stability to ensure continued reliable operation in industrial environments. It may adopt advanced control algorithms and high-precision measurement technology, which can accurately process and control various input signals, thus ensuring the stability and reliability of the system. At the same time, it is also highly flexible and scalable to meet the needs of different industries and applications.
In short, the Triconex 3511 is an efficient, reliable, and flexible industrial DCS module for a variety of automated control systems, especially where the input and output signals require high precision, such as power, chemical, petroleum and other industries.
