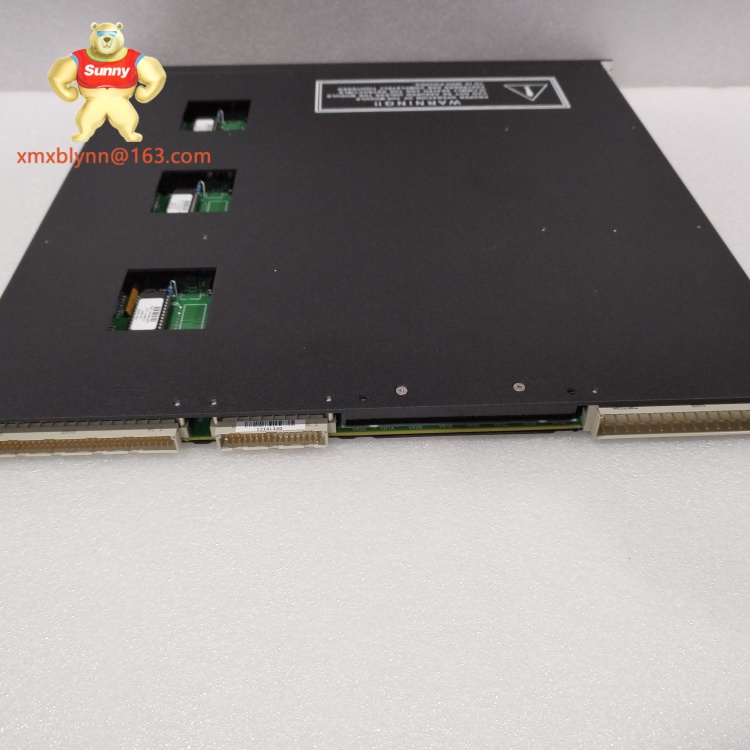

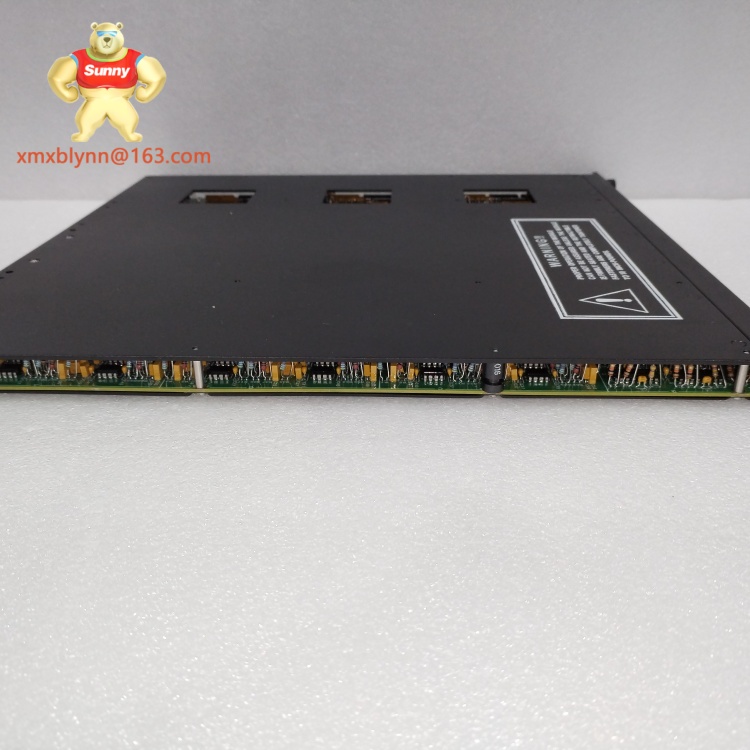

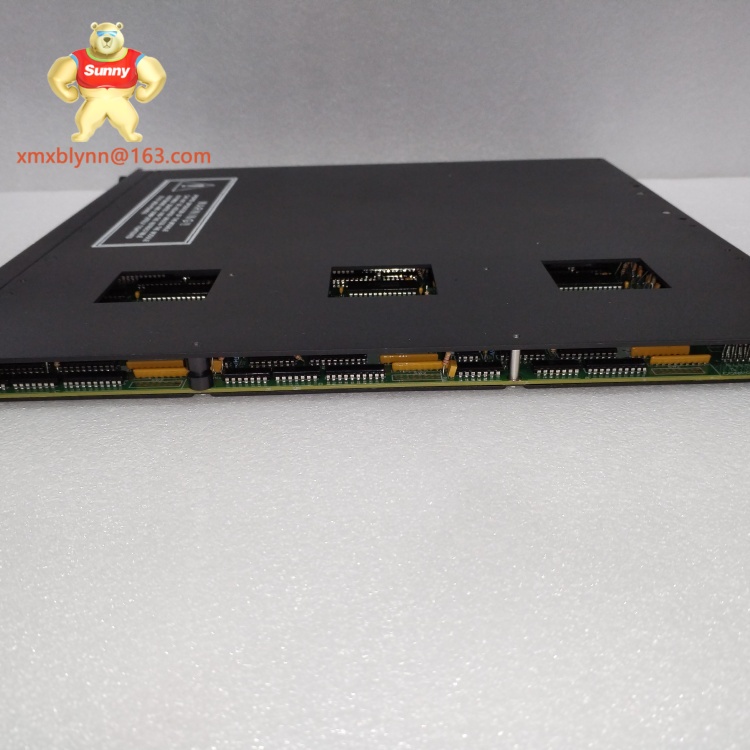

TRICONEX 3564 | Single-Channel Digital Input Module
No. 3564
Brand: TRICONEX Model: 3564 Product type: Single-Channel Digital Input Module Payment method: Wire transfer, Western Union Port of shipment for remittance: Xiamen, China Delivery time: 1-3 working days Condition: 100% original Warranty: 12 months
TheTRICONEX 3564is a single-channel digital input module engineered for safety-critical industrial applications where cost efficiency and reliability are paramount. Optimized for environments requiring SIL 3 compliance without full triple modular redundancy (TMR), theTRICONEX 3564processes 24V/48V DC signals from field devices such as emergency stop switches, pressure sensors, and level indicators, delivering precise data to Triconex controllers while balancing safety and affordability. Unlike its fully redundant counterparts, theTRICONEX 3564employs partial TMR architecture, triplicating only critical signal paths to ensure fault tolerance without compromising on essential safety functions.
Certified to SIL 3 (IEC 61508), theTRICONEX 3564is ideal for applications where single-channel operation suffices but diagnostic rigor remains non-negotiable. Its self-test circuitry detects "stuck-open" or "stuck-closed" faults within 500 milliseconds, providing >99% diagnostic coverage to minimize unplanned downtime. With 16 isolated input channels and compatibility with Triconex’s TS3000 and Tricon systems, theTRICONEX 3564offers a cost-effective solution for industries like oil & gas, chemical processing, and power generation, where safety compliance and budget constraints coexist.
Technical Specifications
Parameter
Value
Product Model
TRICONEX 3564
Manufacturer
TRICONEX (a subsidiary of Schneider Electric)
Product Type
Single-Channel Digital Input Module
Input Voltage
24V/48V DC (20–42.5V DC)
Input Channels
16 isolated channels
Safety Certification
SIL 3 compliant (IEC 61508)
Redundancy Support
Partial TMR (critical signal paths)
Operating Temperature
-20°C to 60°C
Dimensions
160mm x 100mm x 30mm (L x W x H)
Mounting Type
DIN rail or rack mounting
Communication Protocol
Triconex proprietary backplane bus
Response Time
<15ms (nominal)
Diagnostic Coverage
>99% (fault detection within 500ms)
Vibration Resistance
2g peak (10–2000 Hz)
Key Features and Benefits
TheTRICONEX 3564strikes a balance between safety and cost by implementing partial TMR architecture, ensuring critical signal paths are triplicated while non-essential components remain single-channel. This design reduces complexity and lowers costs compared to fully redundant modules like theTRICONEX 3504E, making it suitable for applications where budget considerations are significant. Its dual-voltage capability (24V/48V DC) eliminates the need for external converters, simplifying integration into mixed-voltage systems.
With >99% diagnostic coverage and fault detection within 500 milliseconds, theTRICONEX 3564provides actionable insights to maintenance teams, enabling proactive issue resolution. Its 16 isolated channels support a wide range of field devices, from dry contact closures to high-voltage DC sensors, ensuring compatibility with diverse industrial setups. Engineered for durability, the module withstands moderate vibrations (2g peak) and operates reliably in temperatures from -20°C to 60°C, making it suitable for indoor and semi-harsh environments.
Seamless integration with Triconex’s TS3000 and Tricon systems ensures plug-and-play deployment, reducing setup time and maximizing system coherence. For operators, these features translate to lower lifecycle costs, simplified compliance with safety standards, and enhanced confidence in critical operations.
Application Scenarios
TheTRICONEX 3564excels in industries where safety compliance and cost efficiency are equally important. In chemical processing plants, it monitors reactor interlock systems, processing signals from temperature switches and gas detectors to prevent hazardous reactions. Its partial TMR architecture ensures safety without the added expense of full redundancy, making it ideal for non-catastrophic but still critical processes.
Oil & gas refineries use theTRICONEX 3564to oversee pump status indicators and valve positions in mid-tier safety systems, where SIL 3 compliance is required but the risk of catastrophic failure is lower than in offshore platforms. Power generation facilities leverage its diagnostic capabilities to monitor turbine overspeed switches and coolant flow sensors, ensuring early detection of anomalies before they escalate.
Water treatment plants rely on theTRICONEX 3564to manage pump control systems and monitor pressure switches, ensuring continuous compliance with environmental standards. Its dual-voltage flexibility is particularly valuable in mining operations, where it interfaces with both low-voltage control systems and high-voltage equipment in semi-harsh conditions.
Related Models
TRICONEX 3504E– Full TMR digital input module with extended temperature range (-40°C to 70°C), ideal for high-availability, fully redundant systems.
TRICONEX 3503E– Single-voltage (24V DC) digital input module, predecessor toTRICONEX 3564with limited voltage flexibility.
TRICONEX 3625– Digital output module, paired withTRICONEX 3564to create closed-loop control systems.
TRICONEX 4351B– Communication module enabling data exchange betweenTRICONEX 3564and SCADA or cloud-based monitoring platforms.
TRICONEX 3703E– Analog input module for systems requiring mixed signal processing alongsideTRICONEX 3564.
TRICONEX 3501E– 115V AC/DC digital input module for legacy systems requiring higher voltage compatibility.
Installation and Maintenance
Installing theTRICONEX 3564requires a DIN rail or rack-mounted enclosure within its specified temperature range (-20°C to 60°C). Proper grounding is critical to mitigate EMI—connect the module’s ground terminal to the system’s safety ground using low-impedance wiring. Shielded cables (AWG 22–16) should be used for signal connections to minimize interference, and input wiring must comply with Triconex’s recommended cable specifications.
For maintenance, quarterly system diagnostics via the Triconex interface are recommended to verify channel health and signal accuracy. Annually, recalibrate the module using certified equipment to ensure ±0.1% signal integrity. Inspect terminal connections for corrosion or looseness every six months, particularly in humid environments, and replace worn components promptly. Firmware updates, available through Triconex’s support portal, should be applied to address security patches and enhance functionality.
Product Warranty
TheTRICONEX 3564is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering defects in materials or workmanship under normal use. Xiamen Xiongba specializes in industrial automation, offering a comprehensive range of DCS, robot systems, and servo control modules. With over a decade of global sourcing expertise, the company ensures authentic products at competitive prices, supported by a network of technical specialists.
Our warranty includes free replacement for non-operational units and access to 24/7 technical support for installation guidance and troubleshooting. We stand behind theTRICONEX 3564’s performance, leveraging our industry experience to deliver long-term value and peace of mind. By combining Triconex’s advanced safety technology with Xiamen Xiongba’s commitment to quality, theTRICONEX 3564offers a reliable solution for cost-conscious safety-critical applications worldwide.
