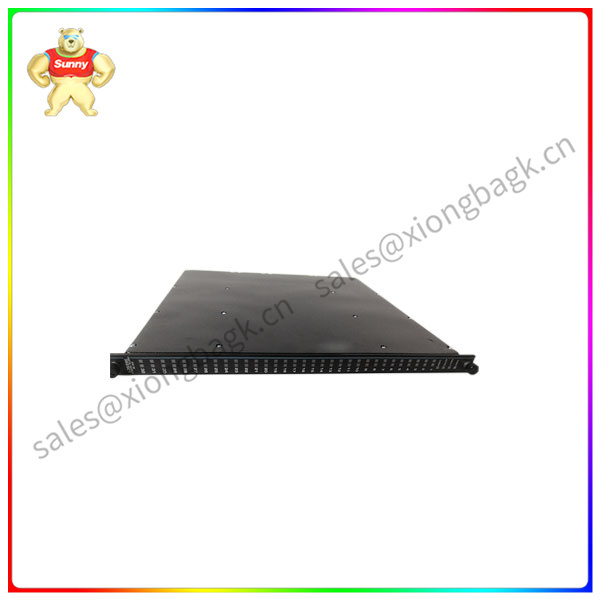

The Triconex 3625C1 is a new advanced control processor module from Invensys. It has powerful processing power and high reliability, and is able to execute advanced control algorithms and safety logic, which is suitable for various industrial process and equipment control applications.
The Triconex 3625C1 module has a variety of features and functions, including:
Powerful processing power: The use of advanced processors and algorithms, can quickly process a variety of data and control logic to meet the needs of complex control systems.
High reliability: The use of high reliability design and manufacturing process, can operate normally under harsh environmental conditions, to ensure the stability and reliability of industrial control system.
Multiple input/output options: Support a variety of input/output options, including analog input, digital input, pulse output, switching output, etc., suitable for a variety of different industrial control applications.
Security function: With advanced security kernel and security controller tasks, it can execute security application logic to ensure the safety and reliability of industrial control systems.
Highly flexible and scalable: supports a variety of communication protocols and interfaces, and can communicate and collaborate with other control modules and external devices to achieve a highly flexible and scalable control scheme.
In summary, the Triconex 3625C1 is an efficient, reliable and flexible advanced control processor module for a variety of industrial process and equipment control applications, such as petroleum, chemical, power, metallurgy and other fields. It has powerful processing power and high reliability, and can execute advanced control algorithms and safety logic to ensure the stability and reliability of industrial control systems.
TRICONEX 3625 Output module Digital 24VDC 32-point TMR isolation
Nominal voltage 24 VDC
TMR type, supervised/unsupervised DO
Output signal number 32, public
Voltage range 16-32 VDC
Maximum voltage 36 VDC
Voltage drop <2.8 VDC@1.7A, typical value
Power module load <13 watts
Rated current, 7A per point per 10ms maximum surge 1.7A
Minimum required load 10 mA
Maximum load leakage is 4 mA
Fuses (on field terminals) have no self-protection
Point isolation 1500 VDC
Diagnostic light
On or off status 1/ dot
Module status Passed, Faulty, Loaded, Active
Field alarm load (1 per point)
Color code Dark blue
