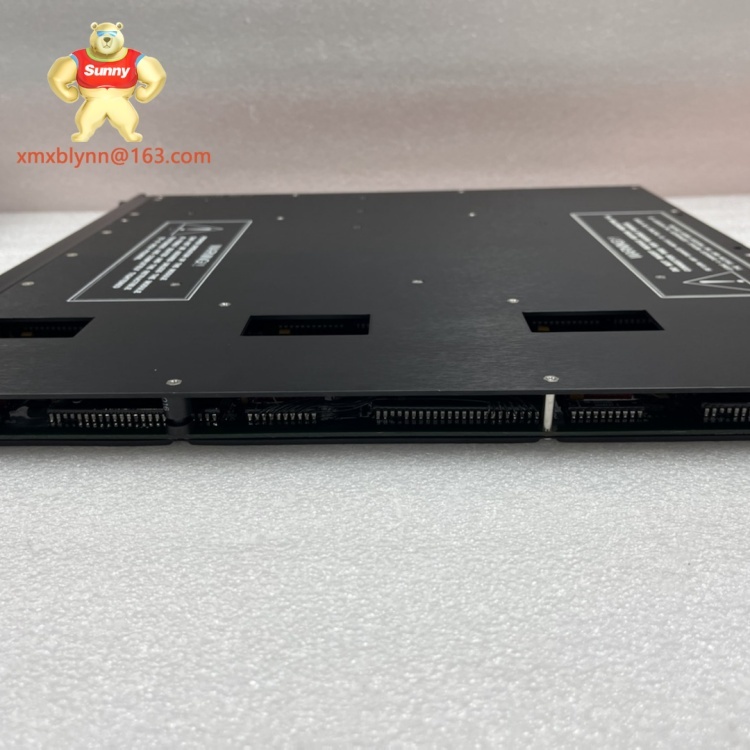

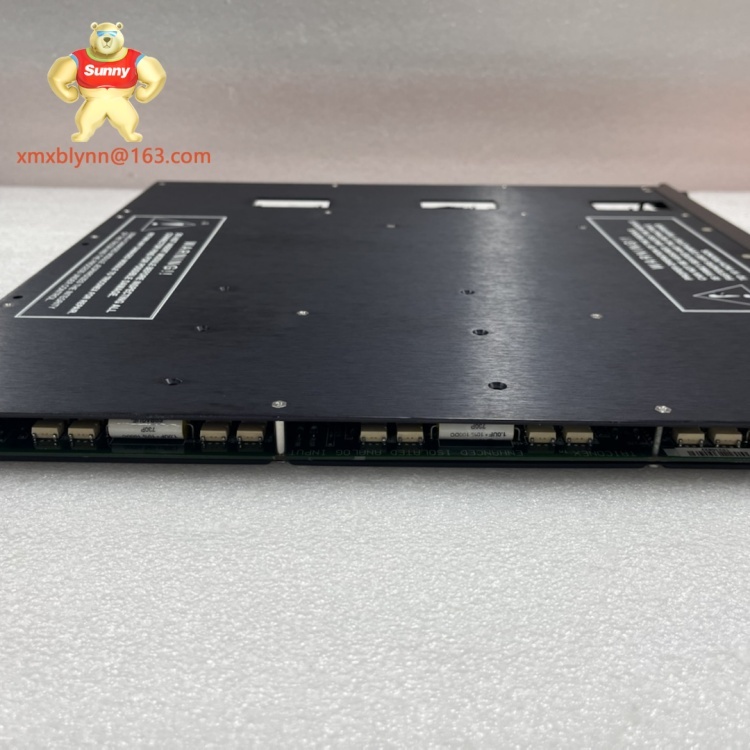

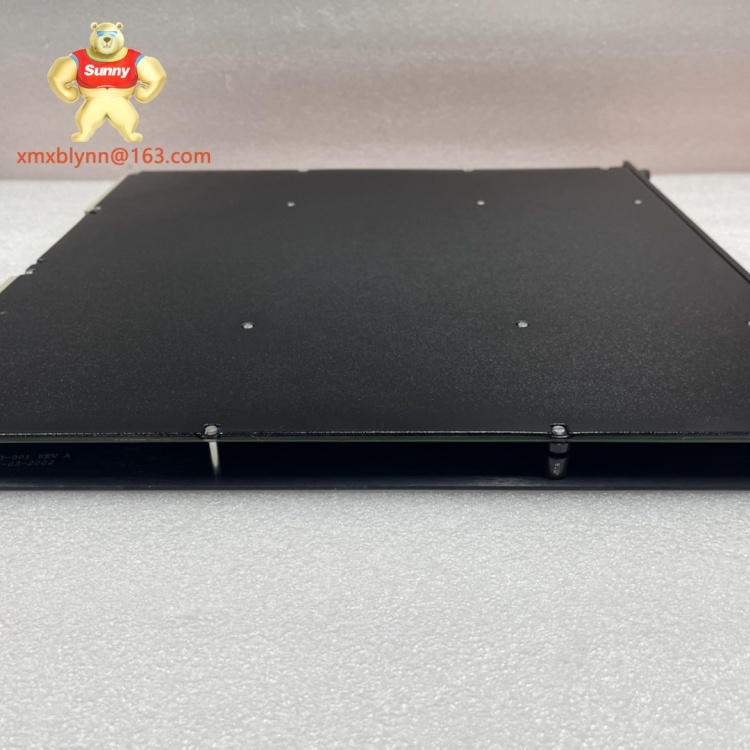

The TRICONEX 3703E is a high-precision analog input module designed for safety-critical industrial automation systems, delivering exceptional signal integrity and diagnostic robustness in mission-critical environments. As a cornerstone of Triconex’s Triple Modular Redundancy (TMR) architecture, the TRICONEX 3703E translates real-world analog signals (e.g., 4–20mA, RTDs, thermocouples) into digital data for advanced process control, making it indispensable for applications like oil & gas refining, nuclear power generation, and chemical reactor monitoring.
What distinguishes the TRICONEX 3703E is its dual SIL 3 compliance (IEC 61508) and >99.5% self-diagnostic coverage, ensuring continuous fault detection and mitigation in high-risk operations. With 16 isolated input channels and 16-bit resolution, the module supports simultaneous monitoring of pressure, temperature, and flow variables with ±0.1% accuracy, reducing measurement errors that could compromise process safety. Its extended operating temperature range (-40°C to 70°C) and military-grade EMI/RFI shielding further enable reliable performance in extreme conditions, from arctic offshore platforms to electrically noisy manufacturing floors.
Built on Triconex’s heritage of innovation, the TRICONEX 3703E seamlessly integrates with TS3000 and Tricon controllers, providing plug-and-play compatibility for retrofitting legacy systems or deploying greenfield projects. By combining triple-redundant signal processing with advanced filtering algorithms, the module minimizes false trips while maintaining rapid response times (<10ms), making it ideal for applications where split-second decisions are critical to preventing catastrophic failures.
The TRICONEX 3703E redefines precision in analog signal conditioning. Its 16 isolated channels eliminate cross-talk interference, ensuring each input remains unaffected by voltage fluctuations in adjacent circuits. The module’s adaptive filtering algorithms dynamically adjust to reduce noise from variable-frequency drives or welding equipment, while its high-impedance inputs prevent signal degradation in long-wire installations.
Safety is engineered into every aspect of the TRICONEX 3703E. Its SIL 3 certification allows direct use in safety instrumented systems (SIS), eliminating the need for external redundancy in many applications. The module’s self-diagnostic engine continuously monitors for faults like open circuits, thermal drift, and ADC failures, generating actionable alerts via the Triconex interface to enable predictive maintenance. This proactive approach reduces unplanned downtime by up to 40% compared to standard analog modules.
For engineers prioritizing scalability, the TRICONEX 3703E supports mixed-signal configurations when paired with Triconex’s digital I/O modules, creating unified control loops for complex processes. Its dual-voltage tolerance (18–30V DC) further future-proofs installations, accommodating both legacy 24V DC systems and modern 30V DC industrial IoT (IIoT) architectures.
The TRICONEX 3703E plays a pivotal role in industries where precise analog monitoring is non-negotiable. In oil refineries, it measures pressure differentials across distillation columns to optimize feed rates, while in offshore platforms, it monitors subsea wellhead temperatures to detect early signs of pipeline blockages. Nuclear power plants rely on the module to track coolant flow rates and reactor core temperatures, ensuring compliance with ISO 17776 standards for nuclear safety.
Chemical processing facilities use the TRICONEX 3703E to analyze pH levels in reactor vessels, triggering corrective actions to prevent corrosive byproducts. In wastewater treatment, it monitors dissolved oxygen levels in aeration tanks, adjusting blower speeds to maximize energy efficiency. Manufacturing lines benefit from its high-speed response, which enables real-time recalibration of robotic arms based on torque feedback from precision sensors.
The module’s adaptability extends to hybrid systems combining analog and digital signals. For example, in a pulp and paper mill, the
TRICONEX 3703E might monitor stock consistency (analog) while simultaneously controlling valve positions (digital) via a Triconex controller, creating a closed-loop system that minimizes waste and improves product quality.
- TRICONEX 3635 – SIL 3 digital output module, paired with TRICONEX 3703E to form complete I/O control loops for safety-critical processes.
- TRICONEX 3504E – Digital input module, complementing TRICONEX 3703E in mixed-signal automation setups requiring both analog monitoring and discrete state detection.
- TRICONEX 4351B – Communication gateway enabling TRICONEX 3703E to transmit data to cloud-based SCADA platforms for remote analytics.
- TRICONEX 9753-810 – Precision power supply module ensuring stable 24V DC delivery to TRICONEX 3703E in high-vibration environments.
- TRICONEX 3721E – Analog output module, used alongside TRICONEX 3703E to create bidirectional control loops for PID-regulated processes.
- TRICONEX 3805E – High-speed analog input module for applications requiring nanosecond-level sampling rates, such as turbine vibration monitoring.
Installing the TRICONEX 3703E requires a DIN rail-mounted enclosure within its operating temperature range, secured with vibration-resistant clips to withstand 5G shocks. Input wiring must use shielded twisted-pair cables (AWG 22–16) to minimize electromagnetic interference, with thermocouple connections requiring dedicated cold-junction compensation. Proper grounding is critical: connect the module’s ground terminal to the system’s safety ground using 16 AWG stranded wire, ensuring a low-impedance path for static discharge.
For maintenance, perform quarterly diagnostic checks via the Triconex interface to validate channel accuracy and signal integrity. In corrosive environments, inspect terminal blocks bi-annually for oxidation and clean contacts with a non-conductive solvent. Annual recalibration using NIST-traceable equipment is recommended to maintain ±0.1% accuracy, while firmware updates (released biannually) should be applied to enhance cybersecurity and compatibility with emerging protocols. Replace surge protection modules every 3 years as part of proactive wear management.
The TRICONEX 3703E is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering defects in materials or workmanship under normal operating conditions. Xiamen Xiongba specializes in industrial automation solutions, offering a comprehensive portfolio of Distributed Control Systems (DCS), robot systems, and modules for large-scale servo control systems. With over a decade of global sourcing expertise, the company ensures authentic products at competitive prices, supported by a network of certified technicians.
Our warranty includes free replacement of non-operational units and 24/7 technical support for installation guidance and troubleshooting. By sourcing directly from overseas manufacturers, Xiamen Xiongba streamlines procurement, reduces lead times, and provides localized support across six continents. We stand behind the TRICONEX 3703E’s performance, combining Triconex’s cutting-edge engineering with our commitment to customer satisfaction, making it the trusted choice for SIL 3-critical analog monitoring worldwide.
