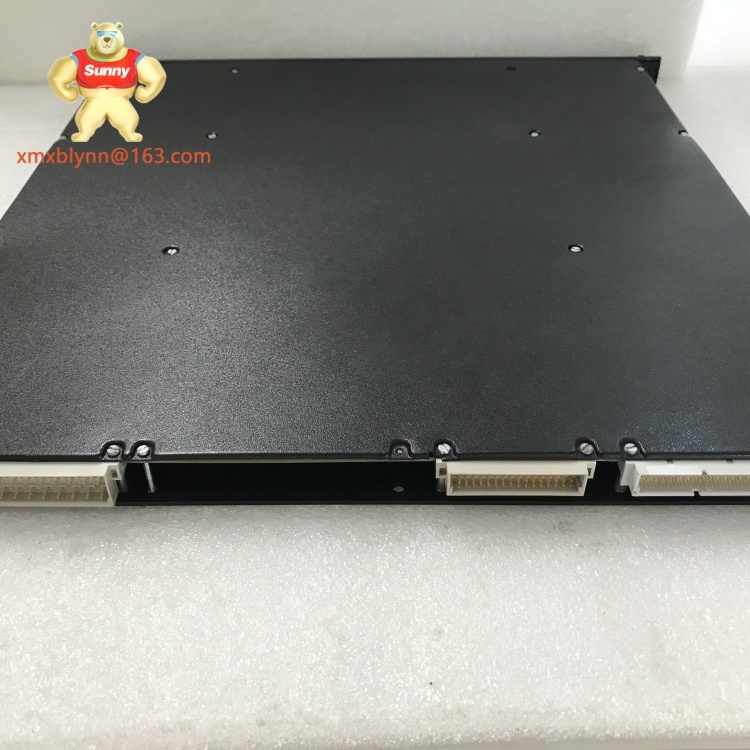

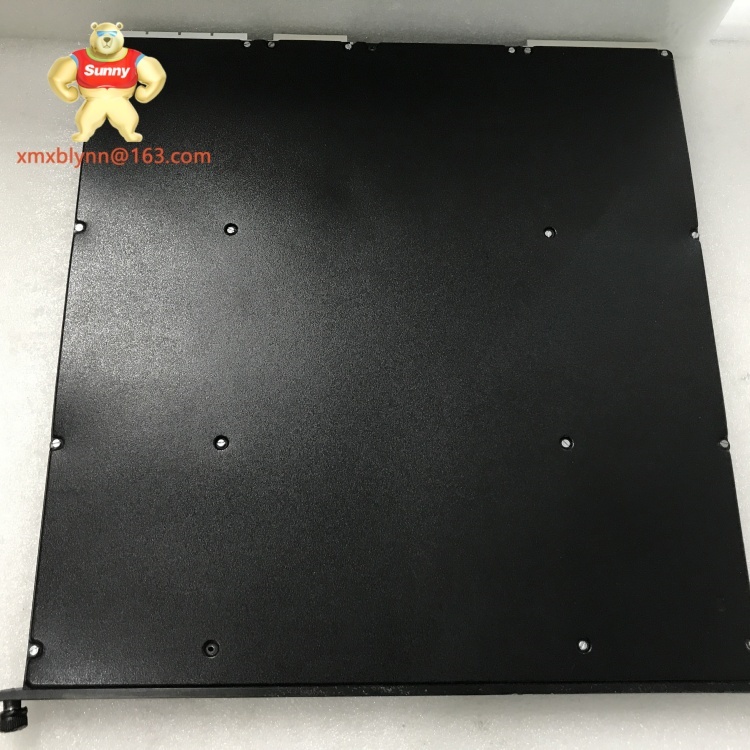

The TRICONEX 3806E is a high-performance safety analog output module designed to integrate seamlessly with TRICONEX’s Tricon safety instrumented systems (SIS), serving as a critical link between the system controller and field actuators in mission-critical industrial environments. As a key component of TRICONEX’s safety-focused portfolio, the TRICONEX 3806E specializes in converting digital control signals from the SIS controller into precise analog outputs—such as 4-20mA or 0-10V signals—enabling accurate control of devices like control valves, variable speed drives, and positioners.
Its core role is to execute safety-critical commands with precision, ensuring that adjustments to process variables (e.g., flow, pressure, or temperature) are made reliably to maintain safe operating conditions. The TRICONEX 3806E is certified for SIL 3 (Safety Integrity Level 3) compliance, meeting the highest standards for systems where failure could lead to catastrophic consequences, such as in oil refineries or chemical processing plants. In automation setups, it acts as the "precision actuator" of the safety system, translating controller decisions into actionable, analog-driven adjustments. What distinguishes the TRICONEX 3806E is its robust design, including channel isolation and advanced diagnostics to minimize errors, and its ability to operate in harsh industrial conditions—attributes that make it a trusted component in safety-critical infrastructure.
The TRICONEX 3806E combines precision and reliability to excel in safety-critical applications. Its 8 isolated output channels ensure that a fault in one channel does not affect others, reducing the risk of cascading failures and enhancing system resilience. This isolation also minimizes electromagnetic interference (EMI), a common challenge in industrial settings with heavy machinery, ensuring that analog outputs remain stable and accurate even in noisy environments.
A standout feature is its ±0.1% accuracy, which is critical for applications requiring precise control—such as maintaining optimal pressure in a chemical reactor or regulating flow in an oil pipeline. The TRICONEX 3806E also includes built-in diagnostics that monitor for short circuits, signal drift, and overloading, providing real-time alerts to operators. This proactive monitoring reduces troubleshooting time and helps maintain system availability, key for minimizing unplanned downtime.
Built to withstand harsh conditions, the module resists vibration, extreme temperatures, and chemical exposure, ensuring long-term performance in environments like offshore platforms or desert refineries. Its SIL 3 certification validates its suitability for high-risk operations, while its compatibility with TRICONEX Tricon controllers simplifies integration into existing safety systems, reducing setup complexity.
The TRICONEX 3806E is widely deployed in industries where precise analog control is critical to safety. In oil and gas refineries, it regulates the position of control valves in distillation units, ensuring that flow rates remain within safe limits to prevent overpressure or underflow. In chemical processing plants, the TRICONEX 3806E adjusts the speed of agitators in reaction vessels, maintaining proper mixing to avoid hazardous byproducts.
Power generation facilities rely on the TRICONEX 3806E to control boiler feedwater pumps, using 4-20mA signals to adjust flow rates and prevent boiler dry-out. Its ability to operate in high-temperature environments also makes it ideal for waste incineration plants, where it regulates damper positions to control combustion temperatures and reduce emissions. By enabling precise, reliable analog control, the TRICONEX 3806E plays a vital role in maintaining safe, efficient operations across these high-risk sectors.
- TRICONEX 3806 – Previous generation analog output module with basic diagnostics, serving as a predecessor to the TRICONEX 3806E.
- TRICONEX 3721-C1 – Safety analog input module that pairs with the TRICONEX 3806E to form a complete analog input-output loop in SIS.
- TRICONEX 3503E RH916FN – Tricon controller that sends digital commands to the TRICONEX 3806E for conversion to analog outputs.
- TRICONEX 3625C1 – Communication module that transmits status data from the TRICONEX 3806E to external monitoring systems.
- TRICONEX 4351B – Redundant power supply ensuring uninterrupted operation of the TRICONEX 3806E during voltage fluctuations.
- TRICONEX 3415 – Digital output module often used alongside the TRICONEX 3806E for mixed analog-digital control setups.
Installing the TRICONEX 3806E requires a clean, dry environment with adequate ventilation to maintain its operating temperature range. The module must be mounted on a 35mm DIN rail with at least 60mm of clearance around it to facilitate wiring and cooling. Ensure a secure ground connection (≤1Ω) to minimize EMI and protect against electrical surges, which is critical for preserving output accuracy. Before installation, verify compatibility with the Tricon controller’s firmware to ensure seamless communication.
For maintenance, regularly check the
TRICONEX 3806E’s status LEDs—steady green indicates normal operation, while amber or red lights signal faults. Conduct quarterly calibration to maintain ±0.1% accuracy, especially in applications with strict tolerance requirements. Inspect wiring connections periodically to prevent loose links that could cause signal degradation. If diagnostics show persistent drift or channel failures, replace the module to avoid compromising safety system performance. The
TRICONEX 3806E supports hot-swappable replacement, allowing maintenance without system shutdown.
The TRICONEX 3806E is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement for manufacturing defects. Xiamen Xiongba E-commerce Co., Ltd. specializes in industrial automation, focusing on the sales of Distributed Control Systems (DCS), robot systems, and modules and spare parts for large-scale servo control systems. Its business covers a wide range of industrial automation products, including PLCs, MOTOROLA MVME industrial modules, Anybus communication converters, RTU remote modules, industrial PCs, low-frequency industrial displays, and SCSI human-machine interfaces. With over a decade of industry experience, Xiongba has grown into a global supplier of industrial automation spare parts, sourcing directly from overseas to offer products and parts from multiple countries and manufacturers. This approach solves customers' procurement challenges, ensures product quality, and provides a significant price advantage. For the TRICONEX 3806E, Xiongba’s global support network delivers timely technical assistance, reinforcing confidence in the module’s reliability and the company’s commitment to customer satisfaction.
