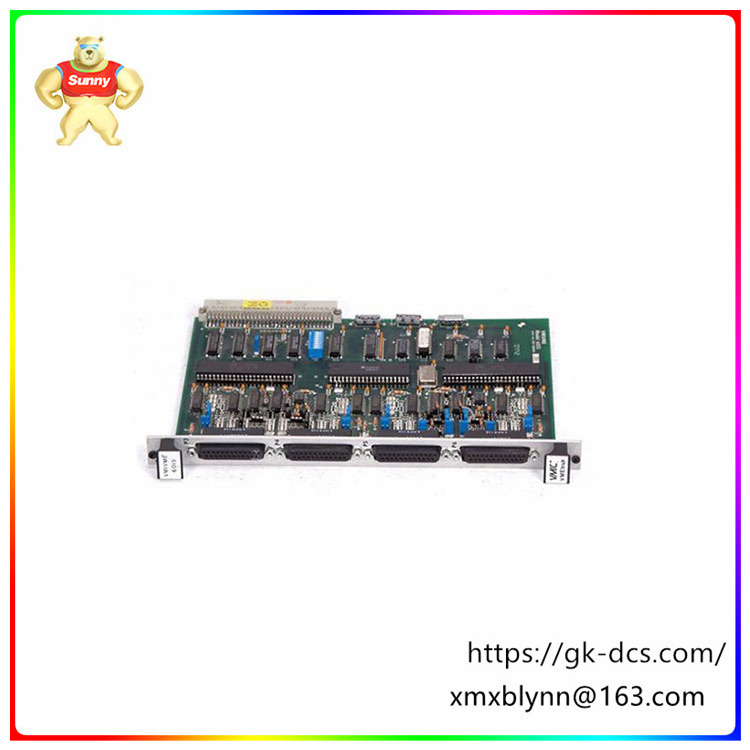

The VMIVME-6015 is a quad-serial input and output (I/O) interface board module whose basic function is as a serial to parallel/parallel to serial controller. The module is designed to handle a variety of serial protocols, including asynchronous protocols, synchronous byte-oriented protocols such as IBM BiSync, and synchronous bit-oriented protocols such as HDLC and IBM SDLC.
A distinguishing feature of the VMIVME-6015 module is its software configurability, which means that its characteristics can be optimized for any given serial data communication application. This makes it have a wide application prospect in industrial automation and control systems, and can meet various complex data communication needs.
In addition, the VMIVME-6015 module has the ability to generate and inspect CRC code, which can be done in any synchronous mode to ensure data integrity and accuracy. It also contains facilities for modem control, which can be very useful in some applications, while modem control functions can also be used for general purpose I/O in applications where these controls are not required.
The VMIVME-6015 module is designed with two MK68564 SIO dual-channel multifunctional peripheral circuits that support self-test functions, which help ensure the stability and reliability of the module. At the same time, the module is equipped with the necessary components to meet the requirements of various serial data communication in the VMEbus system.
Please note that the VMIVME-6015 module is part of the VMIC family of equipment in General Electric's Industrial automation division, which was later acquired and extensively produced by Abaco Systems. However, these units are largely regarded as obsolete equipment and have been completely discontinued. Therefore, if you are considering using or purchasing this module, make sure you are aware of its current status and support.
Overall, the VMIVME-6015 is a powerful, flexible and reliable serial I/O interface board module suitable for a variety of application scenarios requiring efficient and accurate serial data communication.
As a quad serial input and output (I/O) interface board module, the VMIVME-6015 has a wide range of applications. Here are some possible application areas:
Industrial automation: The VMIVME-6015 module plays an important role in industrial automation systems. It can be used as a serial to parallel/parallel to serial controller to process various serial communication protocols and realize data exchange and control instruction transmission between devices. This is essential for the monitoring, control and coordination of equipment in industrial automation systems.
Control system: VMIVME-6015 module is suitable for various control systems, such as industrial automation control systems, embedded control systems, etc. It can handle synchronous and asynchronous serial communication protocols to ensure accurate data transmission and stable operation of the system. Through this module, the control system can realize seamless connection and collaborative work with other devices.
Communication equipment: VMIVME-6015 module is also suitable for the field of communication equipment. It can be used as a serial communication interface to connect various communication devices and systems to realize data transmission and exchange. It is of great significance for constructing communication network, realizing remote monitoring and data collection.
Military and Aerospace: In the military and aerospace field, the reliability and stability of equipment is extremely high. The VMIVME-6015 module is software-configurable and can be optimized according to the needs of specific applications, ensuring accurate data transmission and stable operation of the system. It can be used to build highly reliable communication systems and control systems to meet the high requirements for data transmission and processing in the military and aerospace fields.
Embedded systems: The VMIVME-6015 module is also suitable for embedded systems. Embedded systems usually require modules with high performance, low power consumption and high reliability. VMIVME-6015 module can meet these requirements and provide an efficient serial communication interface for embedded systems, supporting various serial communication protocols.
