Brand: Allan Bradley
Braking options: 24V DC holding brake
Announcement Number: VPL low inertia motor
Connection: Single SpeedTec Din connector
Factory options: Standard
Feedback: 18-bit single-turn and 12-bit multi-turn digital high resolution encoders
Frame size: 130mm bolt round frame size
Mounting: IEC metric mounting flange
Rated speed: E winding, rated speed 3300-3900 RPM

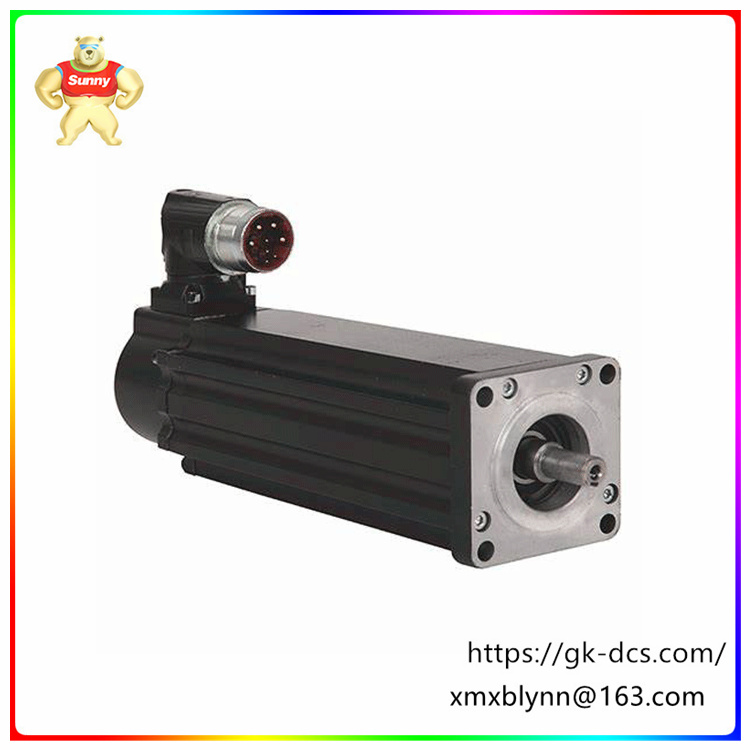

Product Overview:Servo motor, Low inertia, VPL, 480 V AC, 130 mm bolt round frame size, 4 (four) magnet stack, E winding, rated speed of 3300-3900 RPM, 18-bit single-turn and 12-bit multi-turn digital high resolution encoder, keying shaft, Single SpeedTec Din connector, 24V DC holding brake
The VPL-B1304C-PJ14AA is an Allen-Bradley low inertia servo motor with a maximum voltage of 400 volts. The frame size of the module is 130 mm and the motor speed is rated at 2,500 RPM. The low inertia servo motor is equipped with 4 magnet stacks and has an 18-bit absolute multi-turn digital encoder or Hiperface DSL protocol. The module is a shaft-key shaft type with a single speed TEC DIN connector and a right Angle 325 degree rotatable connector. The VPL-B1304C-PJ14AA uses the FF mounting method with free mounting holes or IEC metric mounting flanges. The motor also has a standard factory option and is equipped with a 24-volt DC brake.
Application scenario:The VPL-B1304E-PJ14AA may be widely used in industrial automation equipment requiring high-precision position control, speed control and torque control, such as robots, CNC machine tools, packaging machinery, etc.
