Features
Output Curve
Technical Data
Block circuit diagram / Terminal connection
Functional Description
Display / Setting Elements
Project / Maintenance Instructions / Additional Information
Ordering Code
Unit Dimension

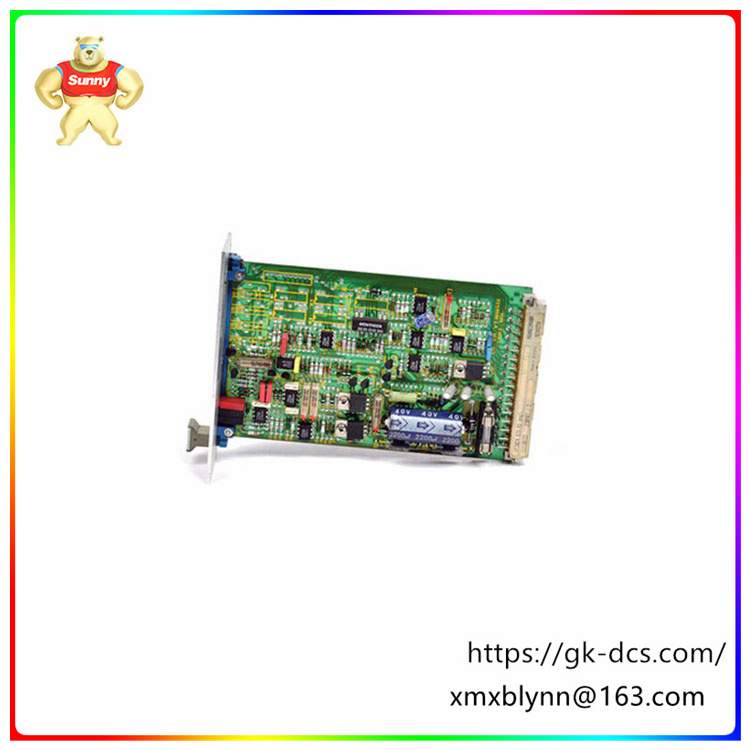

- Amplifier VT 3024 is suitable for pilot control
Operate proportional directional valve (type 4WRZ) and
Direct operation proportional pressure valve (DBEP6)
And 3DREP6) no electrical position feedback.
- Differential input
- Step function generator
- Ramp generator
- Two pulse current output stages
- Voltage supply polarity protection
Attention:
When powered, the ramp time of the amplifier is 5 seconds.
(See page 5 for setting the ramp time of 1 second)
Business card case:
- VT 3002-2X/32, see RE 29928
Single booth, no power supply
Power Supply:
- For the model VT 19083-1x, see RE 29929
Power supply NE30; 115/230 vac - 24 vdc, 70 v
In general, the VT3024 has high-precision signal processing and amplification capabilities, which is suitable for control systems that require high accuracy and stability. At the same time, it supports a variety of communication protocols and interfaces to facilitate connection and communication with different devices and systems.
In addition, the VT3024 proportional amplifier card also has some special features, such as overload protection, overcurrent protection, etc., to improve the reliability and security of the system.
