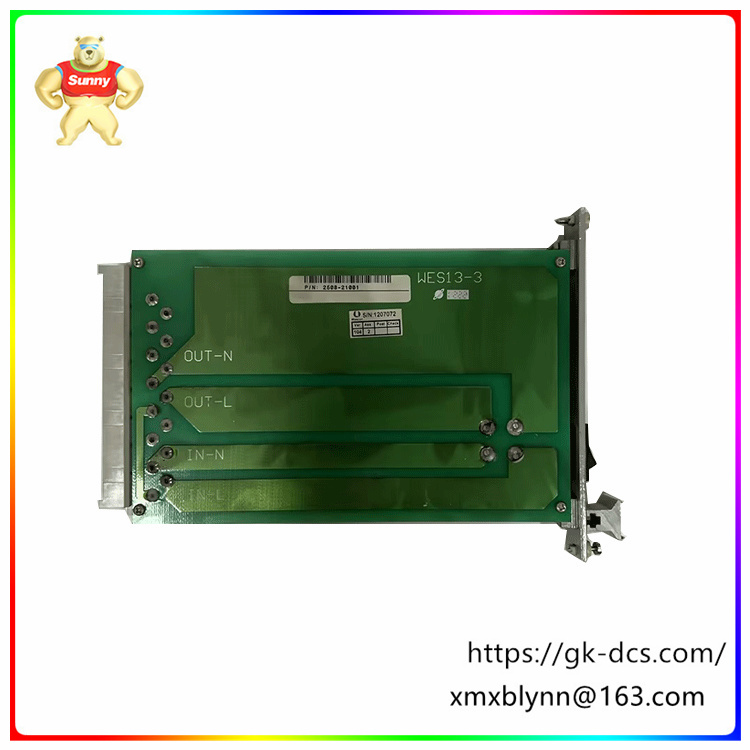

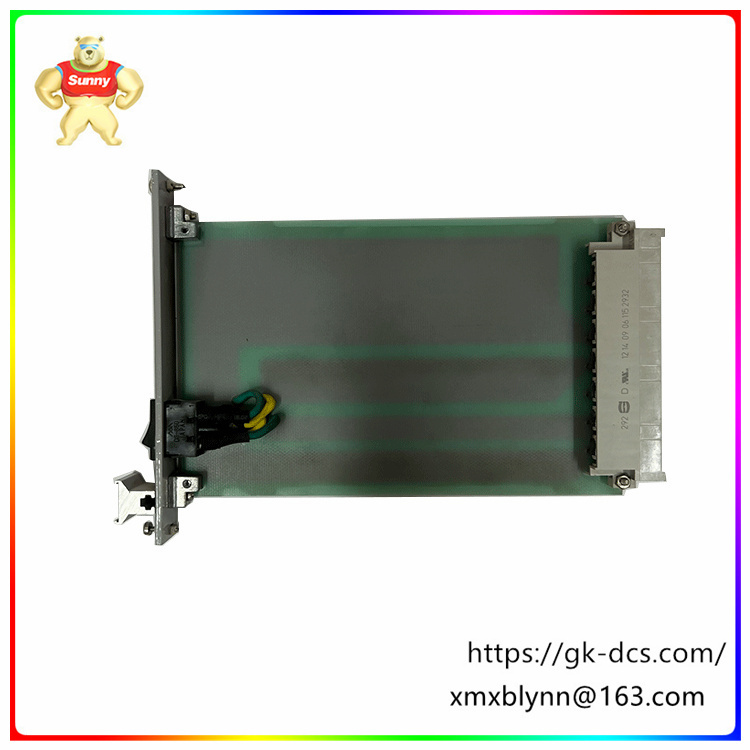

WEA13-13-2508-21001 | Isolated analog output module | For automated test systems

Brand: GE
Model: WEA13-13-2508-21001
Product Type: Isolated analog output module
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
To accommodate its various input channels, the module requires nine input words to be addressed.

Analog input type:
Unipolar voltage 0... 5 V
Unipolar voltage 0... 10 V
Unipolar current 0... 20 mA
Bipolar voltage +/ -5 V
Bipolar voltage +/ -10 V
Bipolar current 20 mA

Absolute maximum input:
It can handle inputs up to 50 V DC and 25 mA, ensuring strong performance even under challenging conditions.
Input impedance:
The module provides a high input impedance of 250 MOhm to the voltage input, maintaining signal fidelity.

Accuracy and linearity:
The accuracy is kept under a low error of +/ -0.05% of the maximum full scale value, while the linear error is limited to +/ -0.008%.
Typical applications for WEA13-13 2508-21001 include:
Isolated Analog Subsystem: This module provides current isolation between the VMEbus and the analog output for applications where grounding loops or noise need to be eliminated.
Analog Current Loop: WEA13-13-2508-21001 This module can be used in industrial process control systems utilizing 4-20mA current loop signals.
Nuclear Facility instrumentation: High isolation voltage and rugged construction make this module suitable for use in nuclear power plants and other harsh environments.
Automatic Test Equipment (ATE) : This module can be used in automated test systems to provide accurate analog outputs for test electronics.
Supervisory Control System (SCADA) : This module can be used in SCADA systems to interface with analog sensors and actuators.

WEA13-13-2508-21001 Isolated analog output module Features and functions:
Signal conversion: Converts digital signals into analog current or voltage signals, such as 4-20mA, 0-10V, etc.
Electrical isolation: Electrical isolation is provided between input and output to prevent electrical interference and fault propagation.
High accuracy and stability: Provides high precision analog output to ensure signal accuracy and stability.
Programmable: WEA13-13-2508-21001 can be programmed to set the range, gain, offset and other parameters of the output signal to meet different application needs.
Fault diagnosis: With the fault diagnosis function, it can detect and report the fault status of the module, which is easy to maintain and repair.
Multiple interfaces: Supports a variety of communication interfaces, such as RS-485, Modbus, etc., for data interaction with other devices.
Compact design: WEA13-13-2508-21001 comes in a compact package for easy installation and integration into the system.
