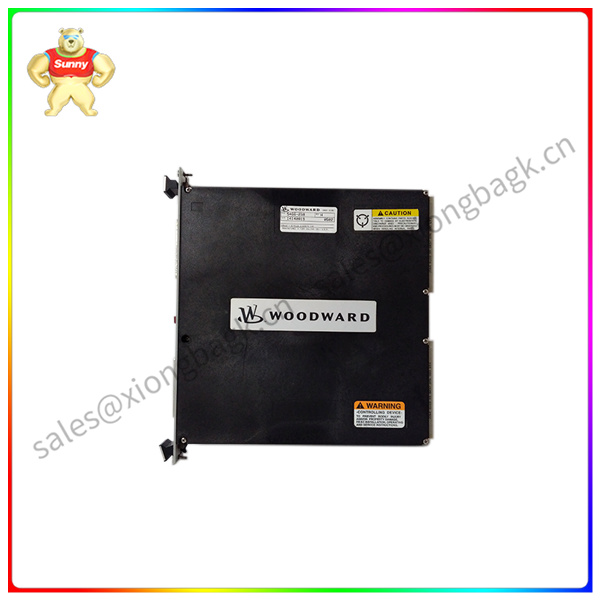

The 5466-258 is a power module commonly used to provide power and power management functions for industrial control systems, electric power generation equipment, Marine control systems, turbine control, and other applications that require accurate control and stabilization of power supplies.
In general, its advantages may include high performance, high reliability, high scalability, and so on. Disadvantages may include higher costs, more complex technical requirements, etc.
The controller is generally composed of a shell, a connector and an internal circuit board, the core of which is a microprocessor located on the circuit board. The microprocessor consists of CPU, l/O, ROM, RAM, bus system, clock generator, logic circuit and so on. 1)CPU: central processing unit, including control unit and computing unit
2)I/O: input and output units, responsible for data exchange with peripheral devices 3)ROM: program memory, generally can only read, can not modify the information
|
Label
|
Specification
|
|
Model Number
|
5466-258
|
|
Brand
|
WOODWARD
|
|
Type
|
Industrial Speed Control Module
|
|
Input Voltage
|
12V DC / 24V DC (selectable; 10V – 30V DC operating range)
|
|
Operating Temp
|
-40°C – +85°C (-40°F – 185°F)
|
|
Communication Method
|
Analog (4-20mA, 0-10V), discrete I/O, optional Modbus RTU
|
|
Mounting
|
Panel-mount (standard) or DIN rail (with adapter kit)
|
|
Weight
|
0.8 lbs (0.36 kg)
|
|
Certifications
|
CE, UL, CSA, ISO 9001, RoHS
|
|
Dimensions
|
6.0” x 4.0” x 2.0” (15.2 cm x 10.2 cm x 5.1 cm)
|
|
IP Rating
|
IP40 (panel-mounted with protective cover)
|
|
Protocols Supported
|
Modbus RTU (optional), Woodward Serial Protocol
|
|
Speed Input Range
|
0 – 10,000 RPM (magnetic pickup or optical sensor compatible)
|
|
Control Output
|
Configurable 4-20mA current loop or PWM signal
|
|
Fault Detection
|
Overload protection, under-voltage monitoring, sensor loss alert
|
|
Response Time
|
load/speed deviations
|
4)RAM: data memory, can be read and written operations 5) bus system: used to connect the various modules of the microprocessor 6) clock generator: ensure that the microprocessor
7) Logic circuit: A module that performs a special task, such as an interrupt controller connected to inputs and outputs
