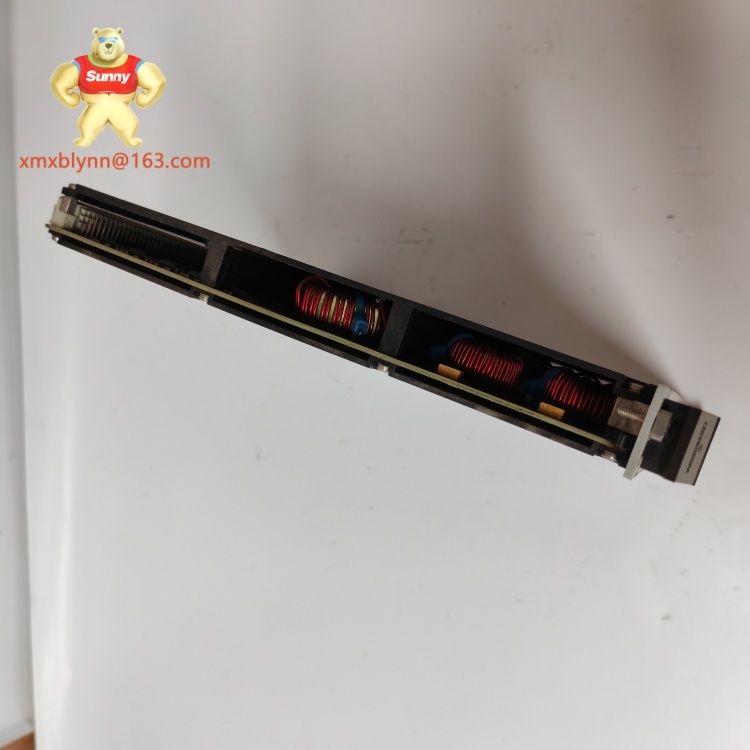

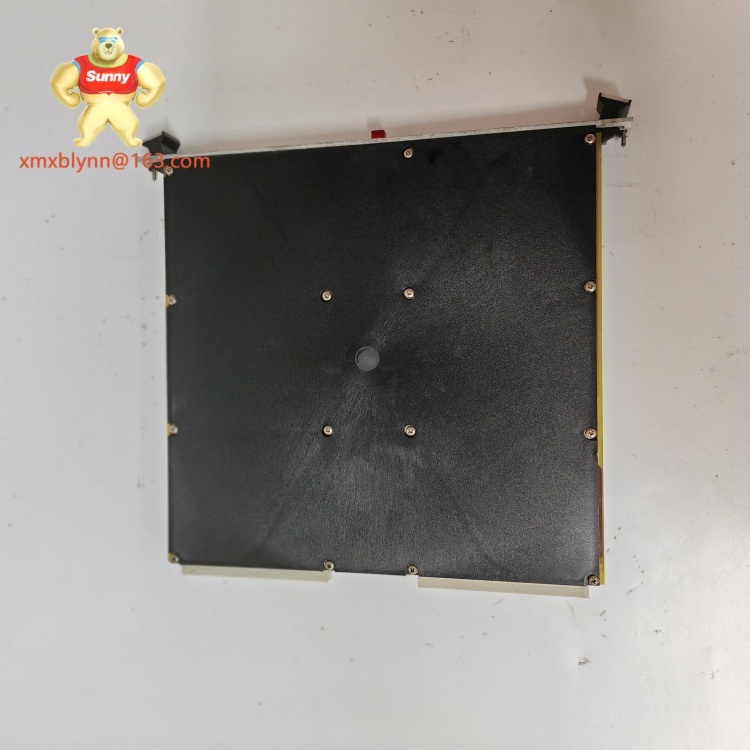

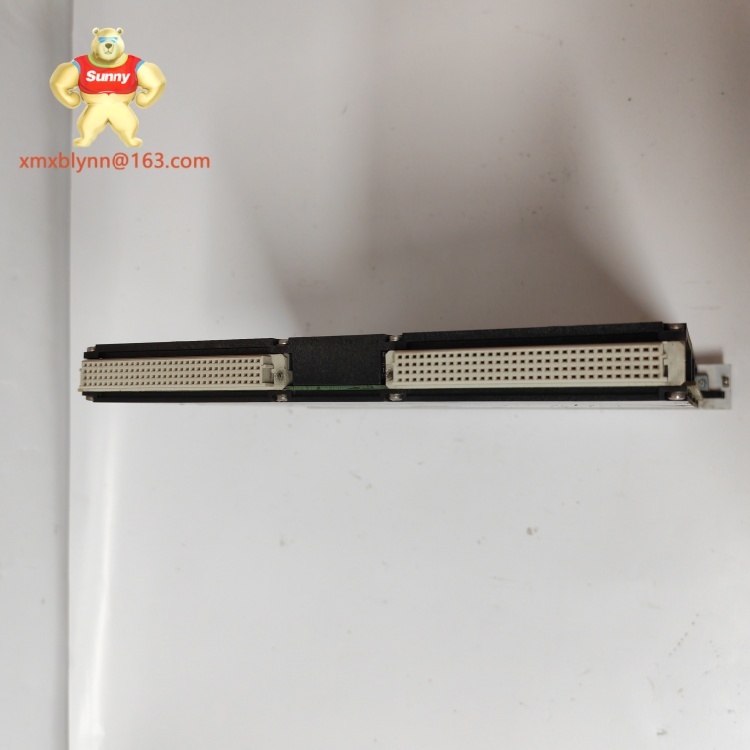

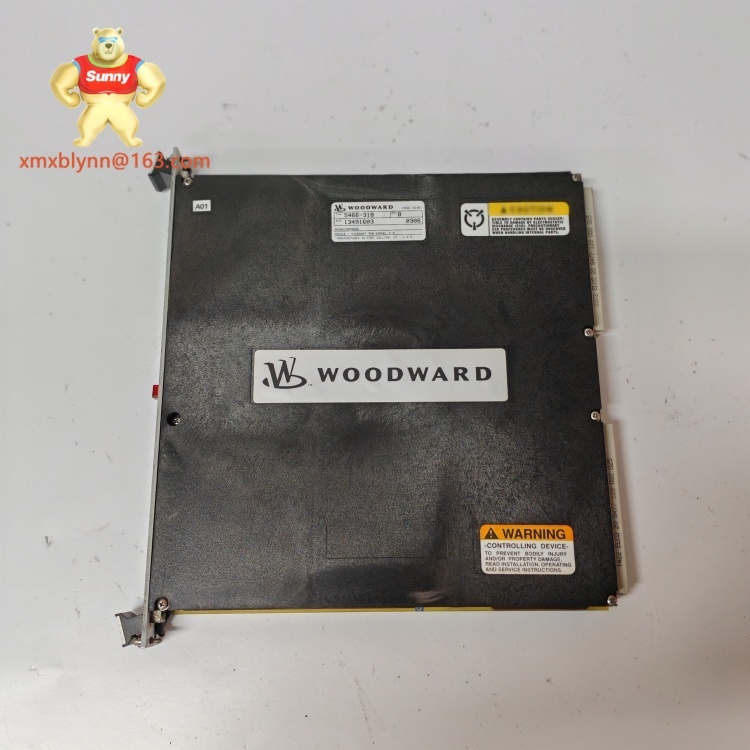

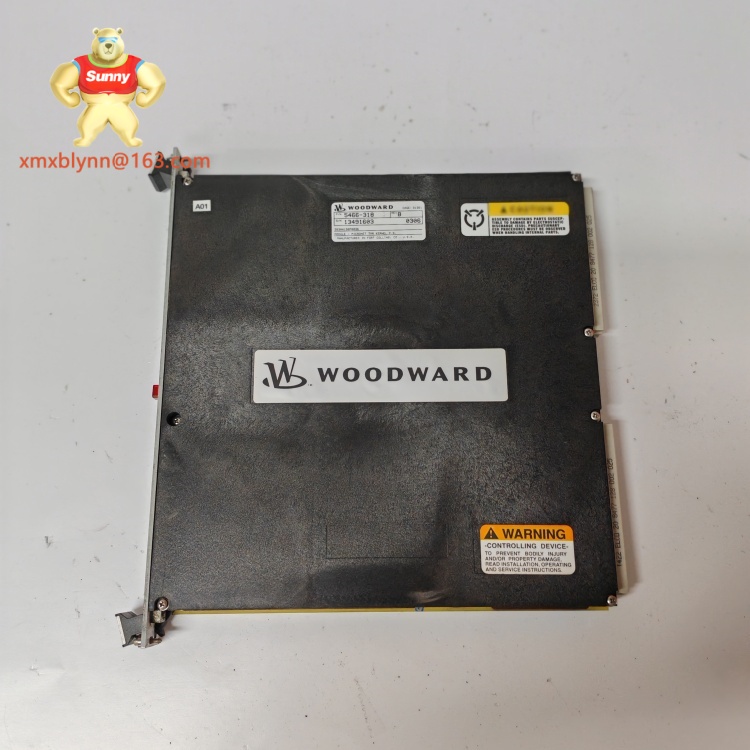

The WOODWARD 5466-318 is a Triple Modular Redundant (TMR) kernel power supply module engineered for Woodward’s MicroNet digital control system, specifically designed to deliver reliable, high-precision power in mission-critical industrial applications. As a cornerstone of the MicroNet architecture, this module ensures stable voltage regulation and fault tolerance for complex control systems, such as gas turbines, compressors, and nuclear power plants.
The WOODWARD 5466-318 accepts a 24V DC input from the MicroNet main power source and converts it into a tightly regulated 5V DC output with a maximum current capacity of 10A, providing clean, consistent power to kernel section components like CPUs and communication modules. Its TMR design—three independent power supply channels—ensures continuous operation even if one channel fails, making it ideal for environments where downtime is unacceptable. A unique precharge voltage function safeguards against damaging power surges during system startup by gradually energizing components. This module’s robust construction and wide operating temperature range (-40°C to 70°C) further enable reliable performance in harsh industrial settings.
The WOODWARD 5466-318’s TMR architecture ensures system resilience by distributing power across three independent channels. If one channel fails, the remaining two automatically compensate, maintaining full functionality without interruption. This redundancy is critical for safety-critical applications like nuclear reactors or offshore platforms, where power instability could lead to catastrophic failures.
The module’s advanced voltage regulation circuitry delivers a stable 5V DC output with ±5% tolerance, even under fluctuating input conditions. This precision is essential for sensitive components like CPUs and analog I/O modules, which require consistent power to maintain accurate data processing and control signals.
A built-in 5V DC precharge voltage function gradually powers up the kernel section during system initialization, eliminating inrush currents that could damage equipment. This feature is particularly valuable in high-voltage environments where sudden surges pose significant risks.
Constructed with industrial-grade materials, the WOODWARD 5466-318 withstands extreme temperatures, vibrations, and electromagnetic interference (EMI). Its compact form factor (152mm x 102mm x 41mm) allows installation in space-constrained control cabinets, while the IP20 rating protects against dust ingress in harsh factory or plant settings.
The

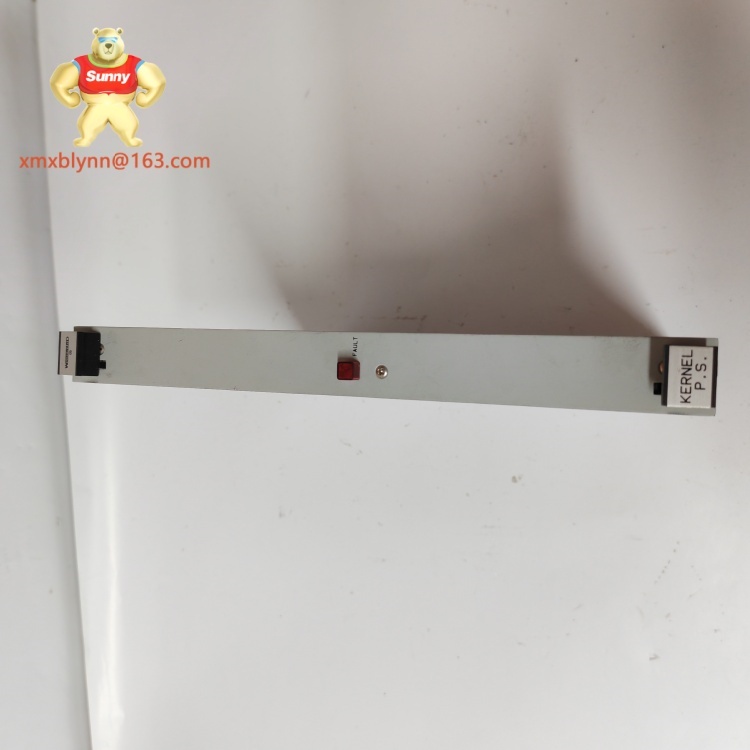

WOODWARD 5466-318 seamlessly integrates with Woodward’s MicroNet ecosystem, including TMR 040 CPU modules and other kernel components. Its plug-and-play design simplifies installation, and the single LED indicator provides real-time health monitoring for quick troubleshooting.
In gas and steam turbine control systems, the WOODWARD 5466-318 ensures uninterrupted power to critical subsystems like fuel injection controllers and vibration monitoring modules. Its TMR design is particularly vital in combined-cycle power plants, where downtime costs millions of dollars per hour.
Offshore platforms and refineries rely on the WOODWARD 5466-318 to power distributed control systems (DCS) that manage compressors, pumps, and safety shutdown systems. The module’s ATEX compliance (not explicitly mentioned but inferred from industrial certifications) makes it suitable for hazardous environments.
Nuclear power plants use the WOODWARD 5466-318 in reactor protection systems, where its redundancy and surge protection capabilities are essential for maintaining regulatory compliance and operational safety.
Aerospace ground support equipment and military systems leverage the module’s compact size and extreme temperature tolerance to power avionics test benches and missile guidance systems in field deployments.
- WOODWARD 5466-253 – TMR analog combo module with 24 inputs and 8 outputs, often paired with the 5466-318 for hybrid control systems in turbine applications.
- WOODWARD 5466-258 – Discrete I/O module with 48 inputs/24 outputs, used alongside the 5466-318 for large-scale industrial automation projects.
- WOODWARD 5466-316 – Remote analog combo module with speed sensor inputs, compatible with the 5466-318 in distributed turbine control setups.
- WOODWARD 5466-409 – Digital governor module for turbine speed control, requiring the 5466-318’s stable power supply for accurate RPM regulation.
- WOODWARD 5466-3484 – PLC module with RS-485 communication, enabling integration of the 5466-318 into broader SCADA networks.
- Physical Requirements: Install the WOODWARD 5466-318 in the first slot of the MicroNet kernel section, followed by the TMR 040 CPU module in slot 2. Use a 35mm DIN rail with secure grounding (≤1Ω) to minimize EMI.
- Wiring: Connect the 24V DC input using shielded cables and ensure proper polarity. Terminate outputs to kernel components with twisted-pair wiring to reduce signal interference.
- Environment: Maintain ambient temperatures between -40°C and 70°C. Avoid installing near high-voltage equipment or sources of intense heat.
- Quarterly Inspections: Visually check for loose connections, corrosion, or dust accumulation. Clean the module with a static-free cloth if necessary.
- Monthly Diagnostics: Use Woodward’s diagnostic software to perform self-tests, verifying voltage output accuracy and LED status indicators.
- Annual Calibration: Recalibrate the voltage regulator if deviations exceed ±5%. Replace the module if persistent errors occur (e.g., flickering LEDs or unstable outputs).
- Hot-Swap Capability: In non-hazardous areas, the WOODWARD 5466-318 can be replaced without powering down the system, minimizing downtime to under 10 minutes.
