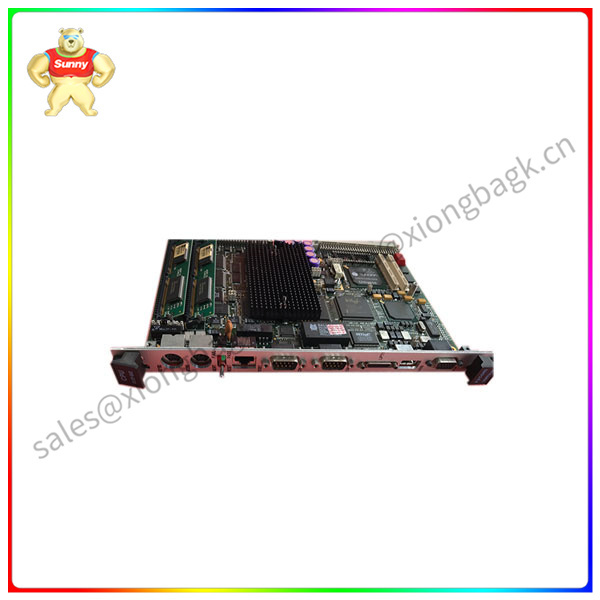

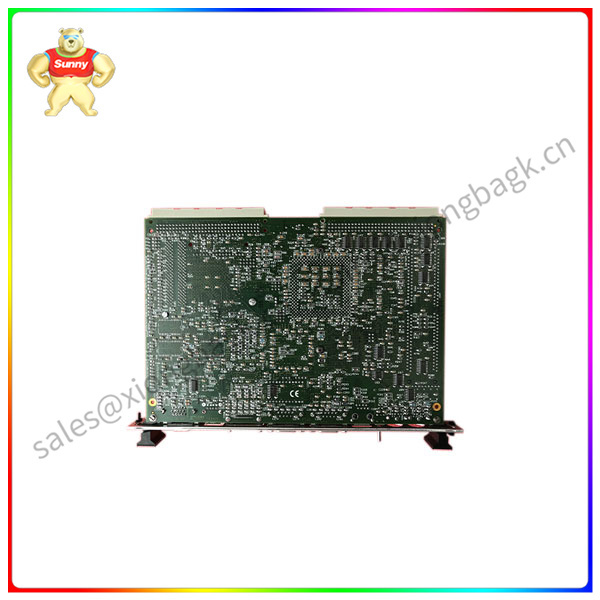

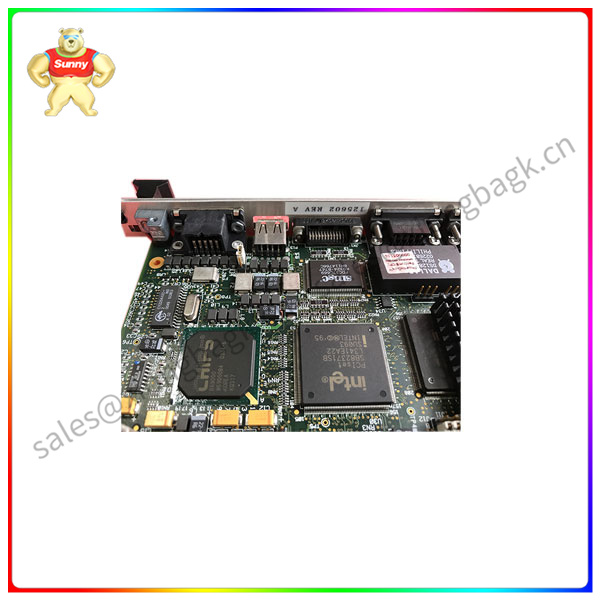

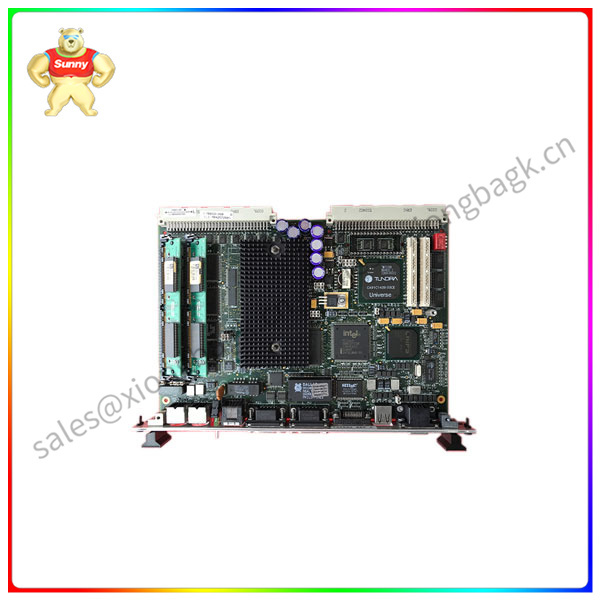

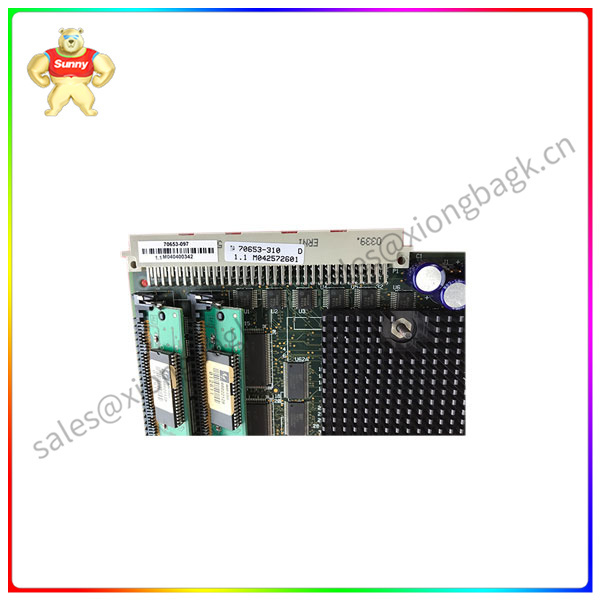

The XVME-653 is a powerful VMEbus PC-compatible processor module from Xycom Automation. The module integrates a 233 MHz MMX Pentium CPU with a PCI to VMEbus interface, allowing users to take advantage of standard off-the-shelf computer software and operating systems to achieve the benefits of multi-processing power. It also features 512K synchronous secondary pipeline cache and up to 256 MB of fast page or Edo DRAM.
Technical description: XVME-653 XYCOM VMEbus PC compatible processor module
XVME-653 is a powerful VMEbus PC-compatible processor module from Xycom Automation, a pioneer and leader in VMEbus PC technology. This powerful single slot
The VMEbus processor integrates the 233 MHz MMX Pentium CPU and the PCI-to-VMEbus interface, allowing users to take advantage of the VMEbus's powerful multiprocessing capabilities while leveraging standard off-the-shelf PC software and the PCI-to-VMeBus interface
The operating system.
At the heart of the XVME-653 module is an Intel 233MHz MMX CPU, combined with 512K synchronous level 2 pipeline cache and up to 256 MB fast page or EDO DRAM.
The module contains a wide range of I/O, including PCI graphics, EIDE and Ethernet controllers, a universal serial bus (USB) port, two high-speed serial ports, and an EPP/ECP parallel port to draw PS/2 style keyboard and mouse ports. Further I/O expansion can be achieved using Xycom Automation's modular I/O carrier module (XVME-976), which provides a mechanism to scale the system using PMC, PC/104, short ISA, or PCI modules.
The XVME-653 module is an unmatched power and I/O solution for single-slot VMEbus modules.
peculiarity
The 233mhz Pentium ⑧ processor with MMX" technology supports up to 256mb of fast page or EDO DRAM at 72-pin SIMM sites, ECC or parity
512K synchronous pipelined level 2 cache
High performance PCI local bus SVGA controller with 2 MB of VRAM
.PCI enhanced IDE controller with DMA
●10/100 Mbit PCI Ethernet controller with front RJ-45 connector
Up to 72 MB of optional flash drive storage
● pci-vmebus interface and DMA
Two high-speed 1 6550 compatible serial ports
● Universal Serial Bus (USB) port
●EPP or ECP parallel port
.PS/2 style keyboard and mouse interface
Configure hardware byte exchange logic
