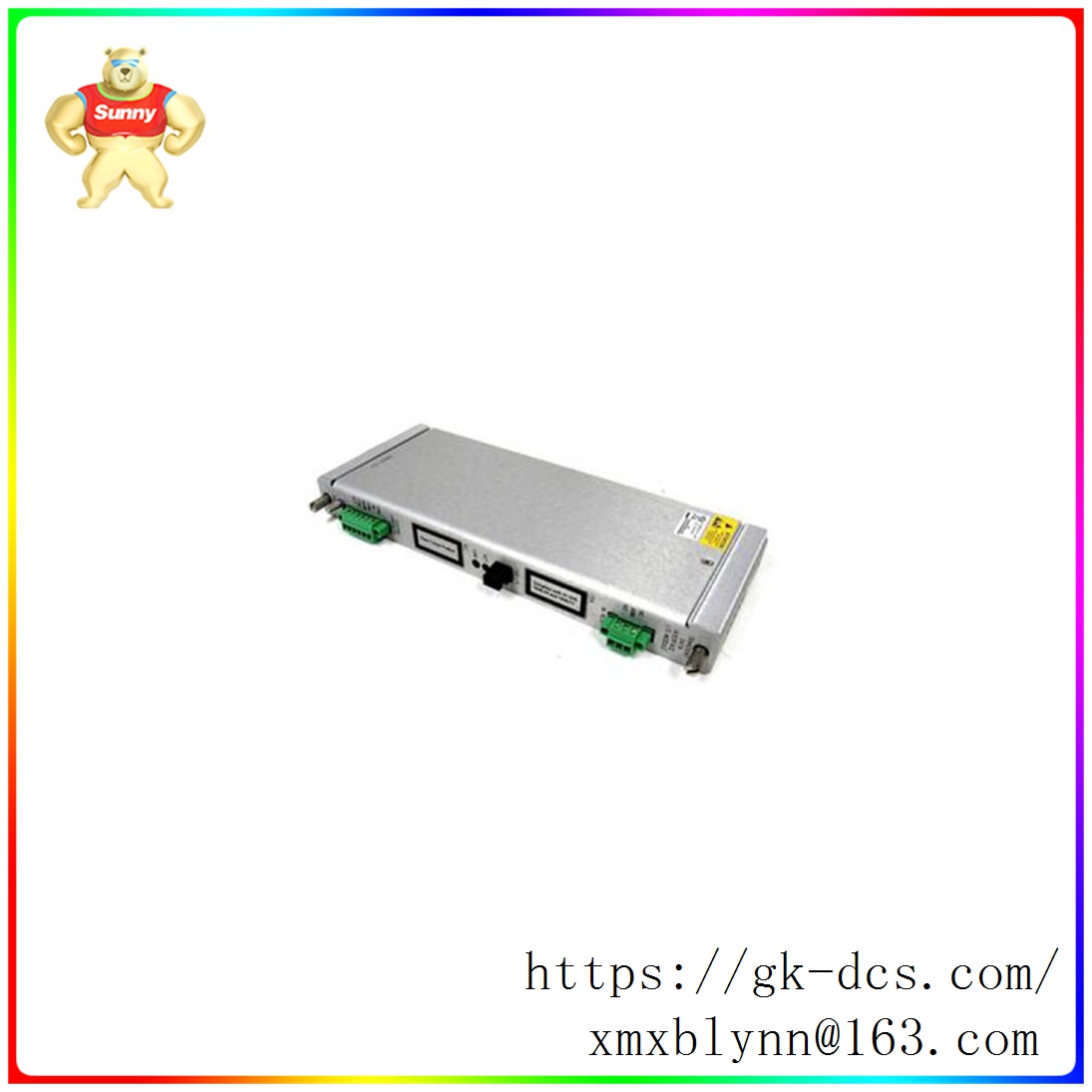

3500/22M 288055-01 Transient data interface module

3500/22M 288055-01 Transient data interface module

trait
10.5W power consumption
USB-B front panel
10Base-T or 100Base-TX Ethernet, automatic sensing
100Base-FX Fiber Ethernet
Rack reset button
Pre and post alarm data
LED indicator
I/O module relay

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (system 1 condition monitoring and diagnosis software and 3500 system configuration software). The TDI combines the capabilities of a 3500/20 rack interface module (RIM) with the data acquisition capabilities of a communications processor such as TDXnet.
In cabinet 3500, the TDI is installed in a slot close to the power supply. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (waveform) data and pass this data to the host software via an Ethernet link. For more information, see the Compatibility section at the end of this document.
Static data capture is standard in TDI. However, enabling the disk with an optional channel will allow TDI to capture dynamic and high-resolution transient data. The TDI integrates communication processor capabilities within 3500 racks.
Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal operation of the overall automatic mechanical protection monitoring system. Each 3500 rack requires 1 TDI or RIM, always occupying slot 1 (next to the power supply).

Start/taxi method data
l Data collected in selected increments of speed and time
l The speed interval can be programmed independently
Start transient data collection based on detecting machine speed in one of two programmable Windows
The number of transient events that can be collected is limited only by the memory available in the module
Alarm data collection
l Data before and after the alarm
l Static values are collected every 1 second 10 minutes before the event and 1 minute after the event
Static values are collected every 100 milliseconds 20 seconds before and 10 seconds after the event
L Collect 2.5-minute waveform data every 10 seconds before an alarm is generated and 1-minute waveform data every 10 seconds after an alarm is generated
