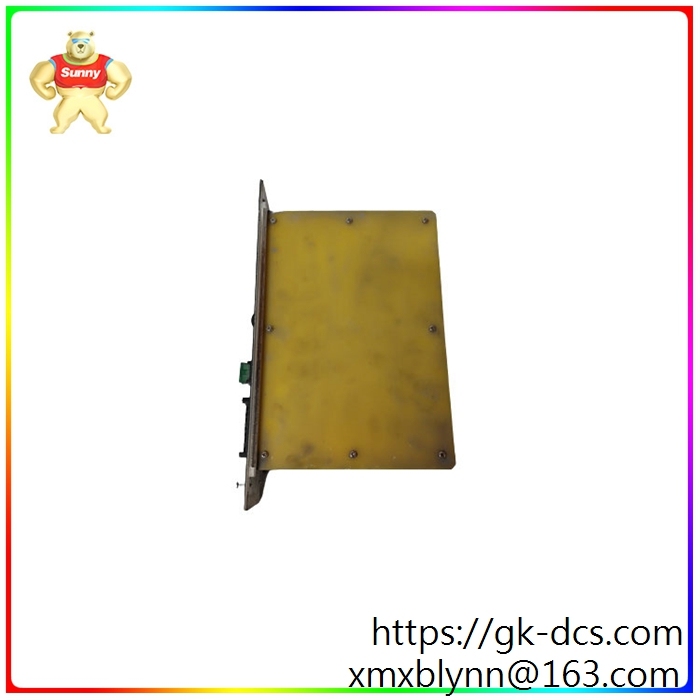

IC698PSA100D|The power supply is installed on the RX7i universal backplane

IC698PSA100D|The power supply is installed on the RX7i universal backplane

The IC698PSA100 is a PACSystem RX7i power module manufactured by Emerson Automation, formerly known as GE Intelligent Platforms (GE IP). This power module is installed in the leftmost slot of any RX7i standard rack, especially slot 0.

It comes with screw type input terminals and is designed for input voltage ranges from 85 to 264 VAC (nominal voltage 120/240 VAC), frequencies from 47 to 63 Hz, and voltages from 100 to 150VDC (nominal voltage 125 VDC). External power connections must be made using AWG #16 (1.3 mm2) solid or stranded copper wire with an insulation class of 75°C (167°F). For ground connections, use #12 (3.3 mm2) copper wire with an insulation rating of 75°C (167°F). Properly terminated GND connections can significantly eliminate (otherwise) reduced system noise. The IC698PSA100 provides a maximum output power of 100 watts, which is the total output power of all three (3) output terminals, providing 4.875 to 5.25 volts, 0-20 amps, 5.1 VDC, nominal values; 11.64 to 12.6 volts, 0-2 amps, +12 VDC, nominal and -12.60 to -11.64 volts, 0-1 amps, -12 VDC, nominal. This power module has a travel time of 15 ms (minimum) and a hold time of 5 ms (minimum). It also provides active overvoltage and overcurrent limits, especially 5.7 to 6.7 volts overvoltage protection at +5VDC; +5 VDC output is 21A; The output value is 2.5A for +12 VDC and 3.5A for -12 VDC. The power module operates from 0°C to 60°C (32° to 140°F) and has an isolation rating of 1500 VDC.

The IC698PSA100 power module is the Rx7i PACsystem modern power module manufactured by GE. It has a nominal rated voltage of 120/240 volts AC or 125 volts DC. The input voltage range of the power supply is between 85 to 264 volts AC or 100 to 150 volts DC. The power module is located in the leftmost slot or slot 0 of the Rx7i system backplane. The module has a power rating of 125 watts. It has an output voltage of 5 volts DC, 12 volts DC and -12 volts DC. The IC698PSA100 power module uses the backplane of the system to send logic level signals to the module. The power module has been enhanced in terms of safety and protection. It prevents overcurrent, overheating and overpressure situations. The IC698PSA100 power module is equipped with a switch located on the front of the power supply. It helps to enable or disable the output channel and does not interfere with the AC line input. There are LED indicators in the power module, which can alert the operator to different things. Leds are FIELD OK, OUTPUT OK and OVER TEMP leds. The power factor of the IC698PSA100 is 0.99 min. The isolation in the module is 1500 volts DC. The power supply also provides 15 ms traverse time without affecting the DC output and 5 ms hold time if the DC output goes offline. The IC698PSA100 power module requires an operating temperature range between 0 and 60 degrees Celsius. The module is certified to operate in a Class 1, Zone 2 environment.
