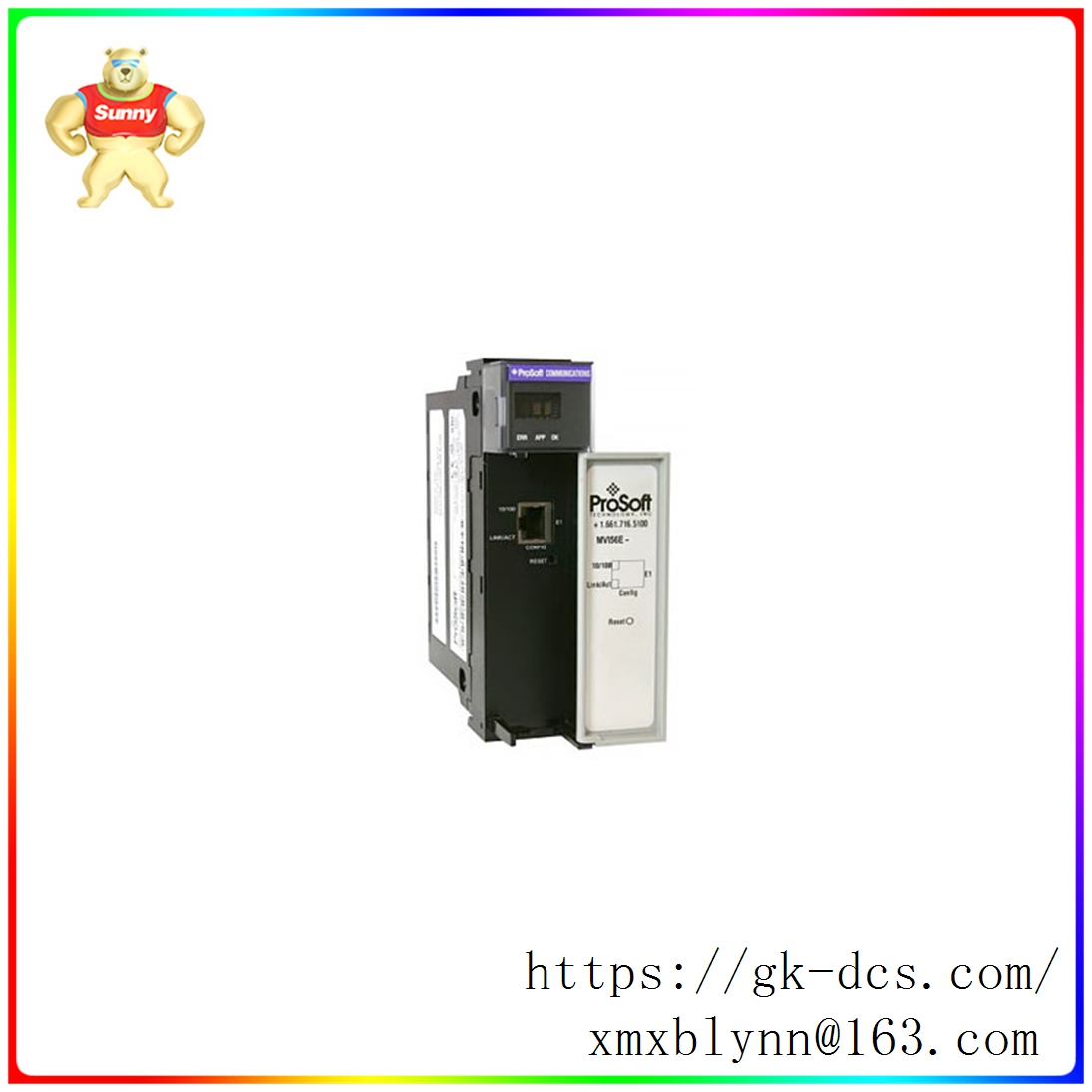

MVI56E-61850S |Ethernet communication module

MVI56E-61850S |Ethernet communication module

MVI56E-61850S Server communication component

Manufacturer :PROSOFT

Product model :MVI56E-61850S

Product type :MVI56E-61850S Server communication component

The MVI56E-61850S is an Ethernet communication module for communication between Rockwell Automation's ControlLogix PACs (Programmable Automation Controller) and IEC 61850 standard Ethernet. This allows non-intelligent substation equipment, such as transformers and switchgear, to feed their data to SCADA (Supervisory Control and Data Acquisition) systems as IEC 61850 IED (Intelligent Electronic Devices).

The module has a variety of communication functions, including RS232, RS422, RS485 and other serial communication modes, as well as wired and wireless Ethernet communication. In addition, it also supports GPRS, CDMA, GSM and other mobile network standards. This enables the MVI56E-61850S to adapt to many different communication environments and needs.

In terms of development, the module provides a wealth of components and controls that constitute a powerful HMI (Human machine interface) development system. At the same time, it also supports object-oriented programming, built-in indirect variables, intermediate variables, database variables, support for custom functions and custom menus. This makes it more convenient and flexible for developers to develop software.

In addition, the MVI56E-61850S also has an open software architecture, supporting DDE, OPC, ODBC/SQL, AcTIveX, DNA and other standards. This enables the module to be seamlessly integrated with other systems, improving the interoperability and scalability of the system.

In terms of hardware, the MVI56E-61850S has a density range from 4 points to 32 points, with module rates of IP20, Class I, 2/ZONE 2. Some modules also have input/output functions for field side diagnostics, electronic fusing, or separate isolation. In addition, the module uses the ControlLogix power Supply 1756 chassis to directly supply 1.2V, 3.3V, 5V, and 24V DC power supplies.
